In Stock Hot Product
856079

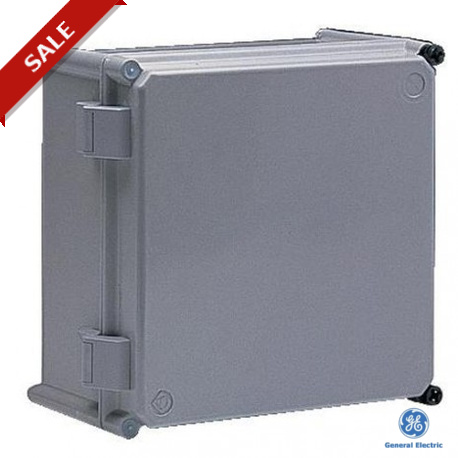

E/011125-100 856079 GENERAL ELECTRIC APO 12 modular boxes 600x600x175 hinged cover IP55
$0.00USD
4062 in stock
Key Specifications
IK:IK10
IP:IP55
Type:APO 12
Colour:RAL 7035
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IK | IK10 |
| IP | IP55 |
| Type | APO 12 |
| Colour | RAL 7035 |
| Volume | 0.063 m3 |
| Approvals | AS;BASEEFA;CSA;UL |
| Standards | EN 60439-1;EN 60529;EN 62208;IEC 60439-1;IEC 60529;IEC 62208 |
| Door/Cover | Cover Polyester hinged |
| Family Name | APO |
| Inner width | 581 mm |
| Inner height | 581 mm |
| Installation | Pole Fixing;Wall mounting |
| Raw materials | Polyester glass-fibre reinforced hot-moulded |
| Enclosure type | Box |
| Standard packing | 1 |
| Total Insulation | Yes |
| (SPECIFICATIONS) | 175 mm |
| Product/Accessory | Product |
| Ambient conditions | Indoor;Outdoor |
| Screws/Hinges/Bolts | Hinges |
| ETIM 6.0 (DIMENSIONS) | EC000058 |
| Door/Cover- plain/glazed | Plain |
| Product/Accessory functionality | Box with hinged opaque cover |
