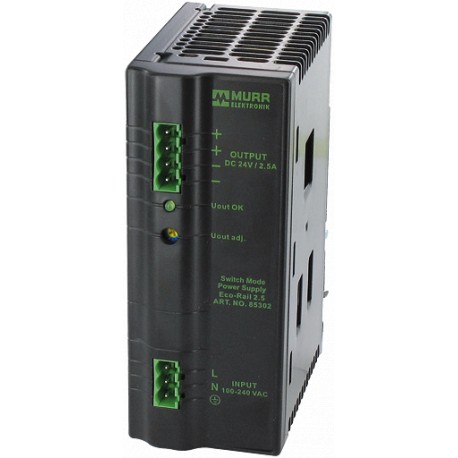

85302 MURRELEKTRONIK Eco-Rail Power Supply 1-phase IN: 90-264VAC OUT: 24V/2,5ADC
$0.00USD
4804 in stock
Key Specifications
EAN:4048879080170
Ripple:max. 20 mV eff/rms
Spikes:max. 100 mV ss/pp
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879080170 |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| eClass | 27049002 |
| Art.No.: | 85302 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2 |
| Efficiency | 85% (115 V AC); 87% (230 V AC) |
| LED display | LED (green) for output voltage |
| Input current | 1.1 A (115 V AC); 0.6 A (230 V AC) |
| Input voltage | 100...240 V AC |
| Output current | 2.5 A (+40 °C); 2.0 A (+55 °C) |
| Output voltage | 24 V DC ±1% |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Unit protection | Short-circuit and overload protected |
| Relative humidity | 20...90%, no condensation |
| Temperature range | 0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C) |
| country of origin | CN |
| Alternative product: | Product ComparisonINPUT: 90...264 V ACOUTPUT: 24 V DCCurrent: 2.5 AInputInput voltage100...240 V ACInput current1.1 A (115 V AC); 0.6 A (230 V AC)Inrush current after 1 msmax. 20 APrimary fusing externalmax. 20 AFrequency50...60 HzGeneral dataStandardsEN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2Mounting methodDIN-rail mountable TH35 (EN 60715)Efficiency85% (115 V AC); 87% (230 V AC)Relative humidity20...90%, no condensationDimensions H × W × D125×50×80 mmTemperature range0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C)OutputOutput voltage24 V DC ±1%Output current2.5 A (+40 °C); 2.0 A (+55 °C)Mains failure bridging timemin. 20 ms (115 V AC); min. 100 ms (230 V AC)Ripplemax. 20 mV eff/rmsUnit protectionShort-circuit and overload protectedSpikesmax. 100 mV ss/ppLED displayLED (green) for output voltageParallel usage/serial usageno/yes (max. 2 units)Commercial datacountry of originCNcustoms tariff number85044090EAN4048879080170eClass27049002Packaging unit1 |
| customs tariff number | 85044090 |
| Dimensions H × W × D | 125×50×80 mm |
| Primary fusing external | max. 20 A |
| Inrush current after 1 ms | max. 20 A |
| Mains failure bridging time | min. 20 ms (115 V AC); min. 100 ms (230 V AC) |
| Parallel usage/serial usage | no/yes (max. 2 units) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
