In Stock Hot Product
85163

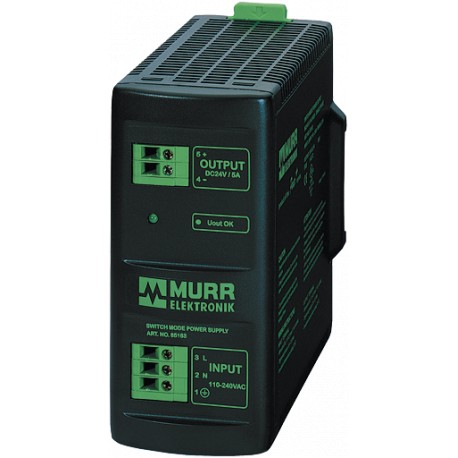

85163 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/5ADC
$0.00USD
3941 in stock
Key Specifications
EAN:4048879080378
Ripple:max. 20 mV eff/rms
Spikes:max. 100 mV ss/pp
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879080378 |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| eClass | 27049002 |
| Weight: | 0.622 kg |
| Art.No.: | 85163 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55011 A |
| Efficiency | 86% (115 V AC); 87% (230 V AC) |
| LED display | LED (green) for output voltage |
| Input current | 2 A (110 V AC); 1.16 A (230 V AC) |
| Input voltage | 100...265 V AC |
| Output current | 5 A (+40 °C); 4 A (+55 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 22...28 V adjustable |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Unit protection | Short-circuit and overload protected |
| Relative humidity | 5...95%, no condensation |
| Temperature range | -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C) |
| country of origin | CZ |
| customs tariff number | 85044090 |
| Dimensions H × W × D | 115×62×125 mm |
| Primary fusing external | max. 10 A |
| Inrush current after 1 ms | max. 30 A |
| Mains failure bridging time | min. 10 ms (110 V AC); min. 80 ms (230 V AC) |
| Parallel usage/serial usage | max. 5 units/max. 2 units |
Product Description
MCS-B POWER SUPPLY 1-PHASE,IN: 100-265VAC OUT: 24V/5ADC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
