In Stock Hot Product
85135

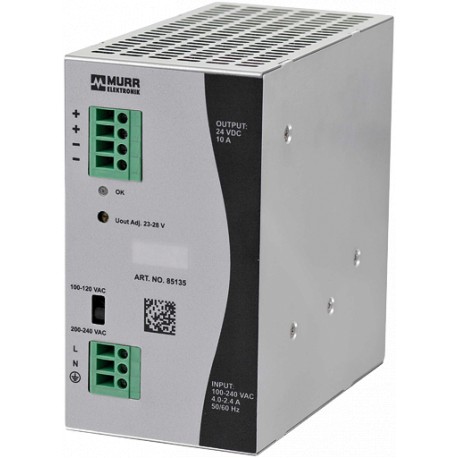

85135 MURRELEKTRONIK ECO-RAIL-2 POWER SUPPLY 1-PHASE, IN: 90 ... 132 V AC / 173 ... 264 VAC OUT: 24V/10ADC
$0.00USD
4781 in stock
Key Specifications
EAN:Four trillion forty eight billion eight hundred seventy nine million six hundred ninety four thousand four hundred eighty three
Free:Screw terminals
Code::Eighty five thousand one hundred thirty five
Peaks:max. 50 mV ss/pp
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion forty eight billion eight hundred seventy nine million six hundred ninety four thousand four hundred eighty three |
| Free | Screw terminals |
| Code: | Eighty five thousand one hundred thirty five |
| Peaks | max. 50 mV ss/pp |
| Rules | EN 60950-1, EN 61204-3, EN 61000-3-2 |
| eClass | Twenty seven million forty nine thousand two |
| Weight: | 0.9 kg |
| Frequency | 50...60 Hz |
| Performance | 86% (115 V AC); 87% (230 V AC) |
| Input current | 4.3 A (100 V AC); 2.1 A (240 V AC) |
| Input voltage | 90...132 V AC/173...264 V AC |
| LED indicator | LED (green) for output voltage |
| Output current | 10 A (+40 ░ C); 7.5 A (+55 °C) |
| Output voltage | 24 V DC ±1%; 23...28 V adjustable |
| Retention time | min. 12 ms (115 V AC); min. 30 ms (230 V AC) |
| Type of fixing | pluggable on DIN rail TH35 (to EN 60715) |
| Residual ripple | max. 10 mV eff/rms |
| Protection device | Protected against short-circuit and overload |
| Relative humidity | 20...90%, non-condensing |
| Temperature Range | 0...+40 °C ...+55 °C derating (temp. storage -20...+85 °C) |
| country of origin | CN |
| Degree of protection | IP20 |
| Customs tariff number | Eighty five million forty four thousand ninety |
| Input fuse (internal) | 5 (A) (T) |
| Minimum lot per order | One |
| Dimensions H × W × D | 125×68×125 mm |
| Use in parallel/in series | no/yes (max. 2 units) |
| Peak current when switching on after 1 ms | max. 18 A (230 V AC) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
