In Stock Hot Product
85133

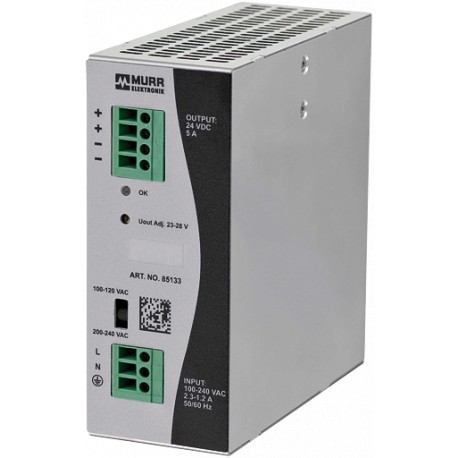

85133 MURRELEKTRONIK Eco-Rail-2 Power Supply 1-phase IN: 90 ... 132 VAC / 173 … 264 VAC OUT: 24V/5ADC
$0.00USD
3980 in stock
Key Specifications
EAN:4048879694476
Ripple:max. 10 mV eff/rms
Spikes:max. 50 mV ss/pp
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879694476 |
| Ripple | max. 10 mV eff/rms |
| Spikes | max. 50 mV ss/pp |
| eClass | 27049002 |
| Weight: | 0.7 kg |
| Art.No.: | 85133 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 61000-3-2 |
| Connection | Screw terminals |
| Efficiency | 87% (115 V AC); 88% (230 V AC) |
| Protection | IP20 |
| LED display | LED (green) for output voltage |
| Input current | 2.4 A (100 V AC); 1.2 A (240 V AC) |
| Input voltage | 100...240 V AC |
| Output current | 5 A (+40 °C); 4 A (+55 °C) |
| Output voltage | 24 V DC ±1%; 23...28 V adjustable |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Unit protection | Short-circuit and overload protected |
| Relative humidity | 20...90%, no condensation |
| Temperature range | 0...+40 °C, ...+55 °C derating (storage temperature -20...+85 °C) |
| country of origin | CN |
| Input fuse (internal) | 5 A (T) |
| customs tariff number | 85044082 |
| Dimensions H × W × D | 125×50×123 mm |
| Inrush current after 1 ms | max. 20 A (230 V AC) |
| Mains failure bridging time | min. 45 ms (115 V AC); min. 45 ms (230 V AC) |
| Parallel usage/serial usage | no/yes (max. 2 units) |
Product Description
ECO-RAIL-2 POWER SUPPLY 1-PHASE,IN: 90 ... 132 VAC / 173 … 264 VAC OUT: 24V/5ADC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
