In Stock Hot Product
85067

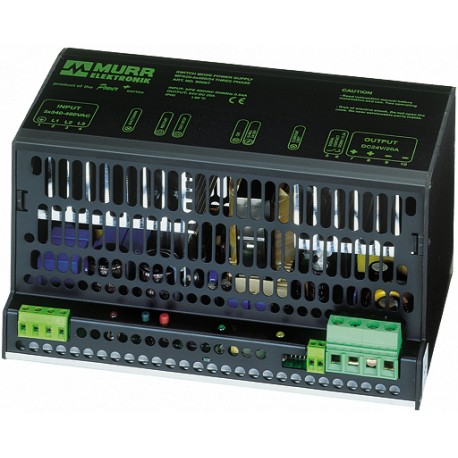

85067 MURRELEKTRONIK MPS POWER SUPPLY 3-PHASE,
$0.00USD
4122 in stock
Key Specifications
EAN:4048879080613
Ripple:max. 20 mV eff/rms
Spikes:max. 100 mV ss/pp
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879080613 |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| eClass | 27049002 |
| Art.No.: | 85067 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B |
| Efficiency | 90% |
| LED display | LED (green): in operation; LED (red): off; LED (yellow): pre-warning when overheated or overloaded |
| Input current | 3 × 0.84 A |
| Input voltage | 3 × 360...440 V AC |
| Output current | 20 A (+60 °C); 24 A (+40 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 22...28 V adjustable |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 (EN 60715), additional plate for screw mounting Art.-No. 89500 |
| Unit protection | Short-circuit and overload protected |
| Phase monitoring | Switching off during 2-phase operation |
| Relative humidity | 30...90%, no condensation |
| Temperature range | 0...+60 °C (storage temperature -25...+85 °C) |
| country of origin | CZ |
| Alternative product: | Product ComparisonINPUT: 3 × 360...440 V ACOUTPUT: 22...28 V DCCurrent: 20 AInputInput voltage3 × 360...440 V ACPrimary fusing externalmax. 10 AFrequency50...60 HzInput current3 × 0.84 AGeneral dataStandardsEN 60950-1, EN 61204-3, EN 55022 BMounting methodDIN-rail mountable TH35 (EN 60715), additional plate for screw mounting Art.-No. 89500Efficiency90%Relative humidity30...90%, no condensationDimensions H × W × D132×243×123 mmTemperature range0...+60 °C (storage temperature -25...+85 °C)OutputOutput voltage24 V DC (SELV), ±1%; 22...28 V adjustableOutput current20 A (+60 °C); 24 A (+40 °C)Mains failure bridging timemin. 3 ms (400 V AC)Ripplemax. 20 mV eff/rmsSpikesmax. 100 mV ss/ppUnit protectionShort-circuit and overload protectedPhase monitoringSwitching off during 2-phase operationLED displayLED (green): in operation; LED (red): off; LED (yellow): pre-warning when overheated or overloadedParallel usage/serial usageyes/yesCommercial datacountry of originCZcustoms tariff number85044090EAN4048879080613eClass27049002Packaging unit1 |
| customs tariff number | 85044090 |
| Dimensions H × W × D | 132×243×123 mm |
| Primary fusing external | max. 10 A |
| Mains failure bridging time | min. 3 ms (400 V AC) |
| Parallel usage/serial usage | yes/yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
