In Stock Hot Product
85051

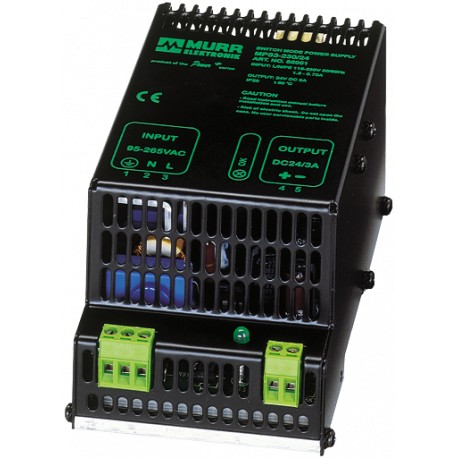

85051 MURRELEKTRONIK MPS power supply 1-phase IN: 95-265VAC OUT: 24V/3ADC
$0.00USD
4942 in stock
Key Specifications
EAN:4048879080736
Ripple:max. 20 mV eff/rms
Spikes:max. 100 mV ss/pp
eClass:27049002
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879080736 |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| eClass | 27049002 |
| Weight: | 0.6 kg |
| Art.No.: | 85051 |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B |
| Efficiency | 84% |
| LED display | LED (green) at min. 22 V DC |
| Input current | 1.5 A (115 V AC); 0.75 A (230 V AC) |
| Input voltage | 95...265 V AC |
| Output current | 3 A (+60 °C); 3.5 A (+40 °C) |
| Output voltage | 24 V DC (SELV), +3/-1% |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 (EN 60715), additional plate for screw mounting Art.-No. 89500 |
| Unit protection | Short-circuit and overload protected |
| Relative humidity | 5...95%, no condensation |
| Temperature range | 0...+60 °C (storage temperature -25...+85 °C) |
| country of origin | CZ |
| customs tariff number | 85044090 |
| Dimensions H × W × D | 132×75×71 mm |
| Primary fusing external | max. 10 A |
| Inrush current after 1 ms | max. 20 A |
| Mains failure bridging time | min. 8.3 ms (115 V AC); min. 80 ms (230 V AC) |
| Parallel usage/serial usage | no/yes |
Product Description
MPS POWER SUPPLY 1-PHASE,IN: 95-265VAC OUT: 24V/3ADC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
