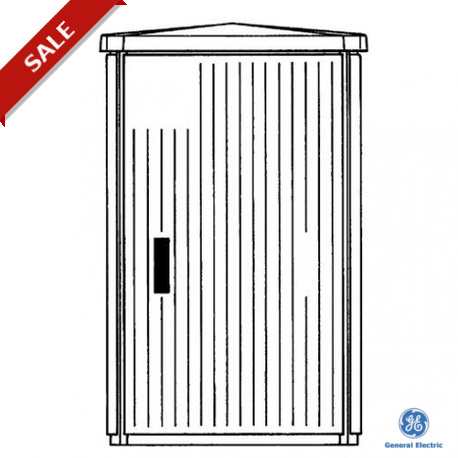

843358 GENERAL ELECTRIC EH3/GD-AP-233 pedestal with greater depth 1125x676x676
$0.00USD
3781 in stock
Key Specifications
IK:IK10
IP:IP23
Type:EH3/GD-AP-233
Colour:RAL 7035
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IK | IK10 |
| IP | IP23 |
| Type | EH3/GD-AP-233 |
| Colour | RAL 7035 |
| Volume | 0.51409 m3 |
| Standards | EN 60439-5;IEC 60439-5 |
| Door/Cover | Door |
| Family Name | EH3 |
| Installation | DIN-plinth;Wall mounting |
| Raw materials | Polyester glass-fibre reinforced hot-moulded |
| Enclosure type | Pedestal |
| Standard packing | 1 |
| Total Insulation | Yes |
| (SPECIFICATIONS) | 676 mm |
| Product/Accessory | Product |
| Ambient conditions | Outdoor |
| Screws/Hinges/Bolts | Bolts M10 |
| Mounting plate depth | 5 mm |
| Mounting plate width | 485 mm |
| ETIM 5.0 (DIMENSIONS) | EC000261 |
| ETIM 6.0 (DIMENSIONS) | EC000261 |
| Mounting plate height | 915 mm |
| Kind of closing system | With solid handle 3-point locking mechanism |
| Door/Cover- plain/glazed | Plain |
| Product/Accessory functionality | Pedestal |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
