831025

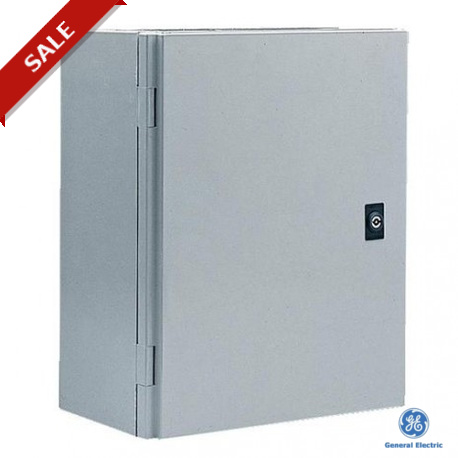

831025 GENERAL ELECTRIC ARIA 32 cabinet with double bit lock 3 mm one point closing system
$0.00USD
3586 in stock
Key Specifications
IK:IK10
IP:IP66
Type:ARIA 32
Colour:RAL 7035
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IK | IK10 |
| IP | IP66 |
| Type | ARIA 32 |
| Colour | RAL 7035 |
| Volume | 0.0102 m3 |
| Approvals | AS;CSA;UL |
| Standards | EN 60439-1;EN 60529;EN 62208;IEC 60439-1;IEC 60529;IEC 62208 |
| Door/Cover | Door |
| Family Name | ARIA |
| Inner width | 170 mm |
| Inner height | 275 mm |
| Installation | Pole Fixing;Wall mounting |
| Raw materials | Polyester glass-fibre reinforced hot-moulded |
| Enclosure type | Cabinet |
| Standard packing | 1 |
| Total Insulation | Yes |
| (SPECIFICATIONS) | 170 mm |
| Product/Accessory | Product |
| Ambient conditions | Indoor;Outdoor |
| Screws/Hinges/Bolts | Hinges |
| ETIM 6.0 (DIMENSIONS) | EC000058 |
| Kind of closing system | With double bit lock 3 mm 1-point closing system |
| Door/Cover- plain/glazed | Plain |
| Product/Accessory functionality | Cabinet |
