83020740

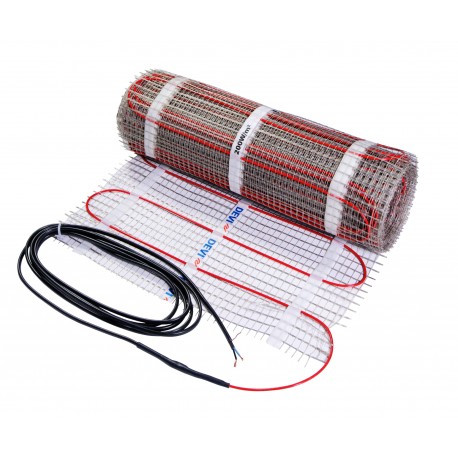

83020740 DANFOSS HEATING DEVImat 200T 3,1m² 230V 605W
$0.00USD
4618 in stock
Key Specifications
EAN ():5703466196038
Type ():DEVImat™ 200T
Volume ():12.825 Liter
Approval ():CEUkrTEST
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5703466196038 |
| Type () | DEVImat™ 200T |
| Volume () | 12.825 Liter |
| Approval () | CEUkrTEST |
| Cold lead () | Yes |
| Lead free () | Yes |
| Cable type () | Twin conductor |
| Net weight () | 2.237 Kilogram |
| Application () | Floor heating |
| Description () | DEVImat 200T 605W 230V 0,5x6,2m |
| UNSPSC CODE () | 40101830 |
| CE evaluated () | Yes |
| Cable screen () | Alufoil 100% |
| Gross weight () | 2.26 Kilogram |
| Outer sheath () | PVDF |
| UV Protected () | No |
| Cable on drum () | No |
| EPD available () | Yes |
| Mat width [m] () | 0.5 m |
| Product group () | Heating Mats |
| Warranty type () | 20-year full service warranty |
| Cold lead type () | DTWB |
| Mat length [m] () | 6.2 m |
| Thickness [mm] () | 3.5 mm |
| Flame retardant () | Yes |
| Set accessories () | Flexpipe ø6.7 2.5m Black |
| Warranty [Year] () | 20 |
| Element IP Class () | IPX7 |
| Heating principle () | Serial resistive |
| Cold lead quantity () | 1 |
| EU RoHS compliance () | Yes |
| Heating output [W] () | 605 W |
| Mat output [W/m²] () | 200 W/m² |
| Package depth [mm] () | 220 mm |
| Package width [mm] () | 220 mm |
| UK RoHS compliance () | Yes |
| Cable diameter [mm] () | 3 mm |
| Coverage area [m²] () | 3.1 m² |
| Outer sheath colour () | Red |
| Package height [mm] () | 590 mm |
| Product description () | DEVImat™ 200T |
| Cold lead length [m] () | 4 m |
| Conductor insulation () | FEP |
| Pulling strength [N] () | 120 N |
| Certification company () | Intertek Semko |
| China RoHS compliance () | Out of scope |
| Cold lead size [mm²] () | 1 mm² |
| Supply voltage [V] AC () | 230 V |
| Cable resistance [Ohm] () | 87.4 |
| Deformation strength [N] () | 600 N |
| EU RoHS exemption clause () | No |
| Cold lead conductor quantity () | 2 |
| REACH Candidate List substances () | No |
| Operating temperature [°C] [max] () | 115 °C |
| Installation temperature [°C] [Min] () | -5 °C |
| Non operating temperature [°C] [Max] () | 120 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Heating Mats, DEVImat™ 200T, 200 W/m², 3.10 m², Supply voltage [V] AC: 230
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable type: Twin conductor, Set accessories: Flexpipe ø6.7 2.5m Black, Mat width [m]: 0.5, Mat length [m]: 6.20, Application: Floor heating
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
