8099-84510-4480500

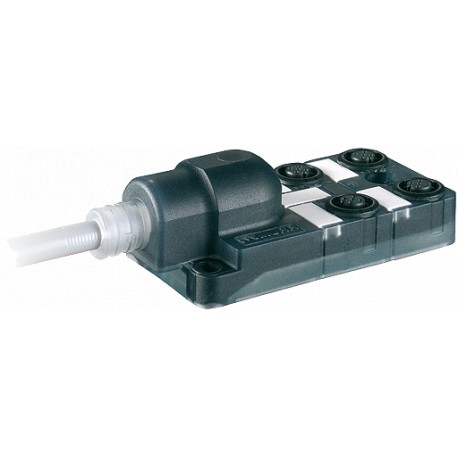

8099-84510-4480500 MURRELEKTRONIK Exact12 4xM12, 5 pole, moulded cable 5.0m PUR 8x0.5 + 3x1.0, UL/CSA
$0.00USD
4758 in stock
Key Specifications
:LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2)
EAN:4048879654968
PIN 1:(+)
PIN 2:(NC)/(S2)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2) | |
| EAN | 4048879654968 |
| PIN 1 | (+) |
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| eClass | 27143423 |
| Housing | Plastic, flame retardant |
| Outer Ø | 9.1 mm ±5% |
| Protection | IP65/IP67 |
| Cable number | 448 |
| Jacket Color | gray |
| Total current | max. 8 A |
| Packaging unit | 1 |
| Wire isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye) |
| Material (wire) | Cu wire, bare |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| Locking of ports | Screw thread (M12×1 mm) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | 24 V DC |
| Temperature range | -20...+70 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 5 Mio. |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6) |
| Bend radius (moving) | 10× outer Ø |
| No./diameter of wires | 8× 0.5 + 3× 1.0 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -40...+90 °C |
| Operating current per contact | max. 4 A |
Product Description
Exact12, 4xM12, 5-pole, moulded cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
