In Stock Hot Product
8000-88540-0000000

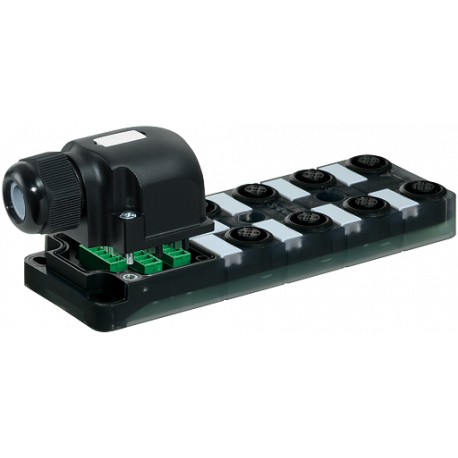

8000-88540-0000000 MURRELEKTRONIK EXACT12, 8XM12, 5-POLE, CAP, PLUG. SPRING TERM.
$0.00USD
4427 in stock
Key Specifications
:LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2)
EAN:4048879053853
PIN 1:(+)
PIN 2:(NC)/(S2)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2) | |
| EAN | 4048879053853 |
| PIN 1 | (+) |
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| eClass | 27143423 |
| Housing | Plastic, flame retardant |
| Connection | Spring clamp plug-in terminals: max. 1.5 mm² (AWG 16) |
| Protection | IP65/IP67 |
| Total current | max. 8 A |
| Packaging unit | 1 |
| Operating voltage | 24 V DC |
| Temperature range | -20...+70 °C |
| country of origin | DE |
| customs tariff number | 85369010 |
| Operating current per contact | max. 4 A |
Product Description
EXACT12, 8XM12, 5-POLE, CAP, PLUG. SPRING TERM.Self wireable, PNP LED
