In Stock Hot Product
7ND4121-1CA23-1DA2

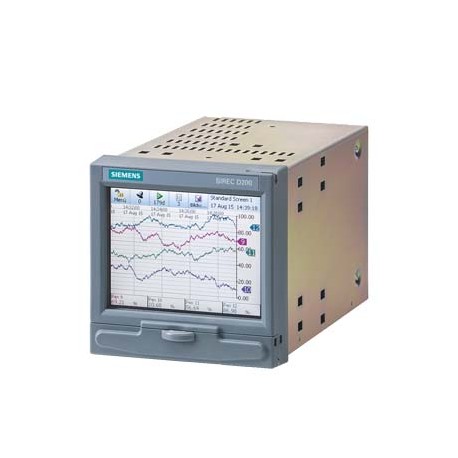

7ND4121-1CA23-1DA2 SIEMENS SIREC D200 Displayrecorder Front dimensions 144 x 144 mm, for all standard applic..
$0.00USD
3521 in stock
Key Specifications
:VersionClassificationeClass5.127-21-02-04eClass627-21-02-04eClass7.127-21-02-04eClass827-21-02-04eClass927-21-02-04eClass9.127-21-02-04UNSPSC1532-15-17-03
EAN:Not available
UPC:Not available
UNSPSC:15
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass5.127-21-02-04eClass627-21-02-04eClass7.127-21-02-04eClass827-21-02-04eClass927-21-02-04eClass9.127-21-02-04UNSPSC1532-15-17-03 | |
| EAN | Not available |
| UPC | Not available |
| UNSPSC | 15 |
| eClass | 5.1 |
| List Price | Show prices |
| Price Group | 8S2 |
| Metal Factor | None |
| Product Group | 4736 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90308400 |
| Customer Price | Show prices |
| Product family | Not available |
| Net Weight (kg) | 2,5 Kg |
| Country of origin | Mexico |
| LKZ_FDB/ CatalogID | MP20-5 |
| Packaging Quantity | 1 |
| Packaging Dimension | Not available |
| Product Description | SIREC D200 - Displayrecorder Front dimensions 144 x 144 mm, for all standard applications/ 5" TFT Display, Ethernet interface (rear side) and USB interface (front side) AC 50 or 60 Hz, 90 to 240 V 12 universal inputs: mA, mV, V, TC, RTD, R . 4 Relays (240V) 1 GByte Transmitter power and optional interfacees: none 30 Credits without Extended System Security (ESS), IP54 Manual in English |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : EAR99I / AL : N |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Product Dimensions (W x L x H) | Not available |
| Article Number (Market Facing Number) | 7ND4121-1CA23-1DA2 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 18.07.2017 |
Product Description
SIREC D200, logger with display, front dimensions 144 X 144 mm, for all standard applications, TFT display, Ethernet interface (rear side) and USB interface (front side), Power supply: 90 or 240 V.c.a
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
