In Stock Hot Product
7ML5662-6EC00-0JB0

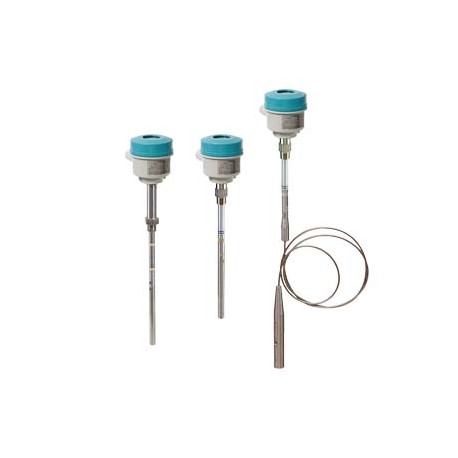

7ML5662-6EC00-0JB0 SIEMENS Pointek CLS300 RF Capacitance point level switch, digital, high temperature desig..
$0.00USD
3391 in stock
Key Specifications
:VersionClassificationeClass1227-20-05-03eClass1427-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03ETIM8EC002993ETIM9EC002993
EAN:Not available
UPC:Not available
ETIM:8
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass1227-20-05-03eClass1427-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03ETIM8EC002993ETIM9EC002993 | |
| EAN | Not available |
| UPC | Not available |
| ETIM | 8 |
| eClass | 12 |
| Group Code | R3P0 |
| SCIP number | |
| Metal Factor | None |
| Product Group | 4717 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90318020 |
| Product family | Pointek CLS300 - Digital |
| Net Weight (kg) | 2,000 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | FI01-4 |
| Packaging Quantity | 1 |
| Product Description | Pointek CLS300 RF Capacitance point level switch, digital, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. With display and digital communications. Process Connection: Welded flange, 316L stainless steel, Type A flat faced: DN 50, PN 16 Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: General Purpose CSA, FM, CE, UKCA, RCM Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65 Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged) |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Article Number (Market Facing Number) | 7ML5662-6EC00-0JB0 |
| Estimated dispatch time (Working Days) | 15 Day/Days |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 8L3 / 8L3 |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
. Pointek CLS300 RF Capacitive Level Switch, Digital, High Temperature Variant. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adj
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
