In Stock Hot Product
7ML5652-6EC00-0GA2

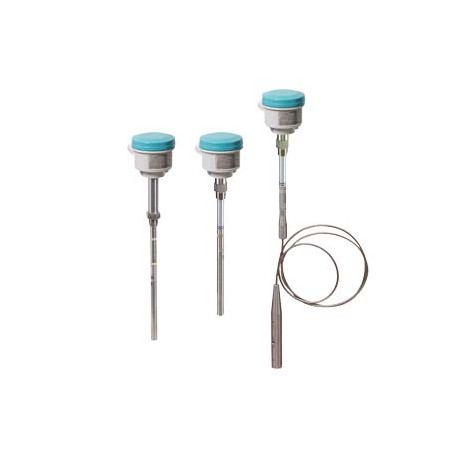

7ML5652-6EC00-0GA2 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..
$0.00USD
3614 in stock
Key Specifications
:VersionClassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03
EAN:Not available
UPC:Not available
eClass:5.1
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03 | |
| EAN | Not available |
| UPC | Not available |
| eClass | 5.1 |
| Price Group | 8L3 |
| Metal Factor | None |
| Product Group | 4717 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90261029 |
| Product family | Not available |
| Net Weight (kg) | 2,000 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | FI01-4 |
| Packaging Quantity | 1 |
| Packaging Dimension | Not available |
| Product Description | Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: Welded flange, 316L (1.4404) stainless steel, Type A flat faced: DN 50, PN 16 Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: Explosion Proof with IS Probe CSA/FM Class I, Div. 1, Gr. A, B,C,D, CSA/FM Class II, Div. 1, Gr. E, F, G, CSA/FM Class III T4 Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 Active Shiled Length: Extended Shield - (400 mm threaded, 380 mm flanged) |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | 13 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Product Dimensions (W x L x H) | Not available |
| Article Number (Market Facing Number) | 7ML5652-6EC00-0GA2 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptabl
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
