In Stock Hot Product
7ML5632-8EC00-1GC0

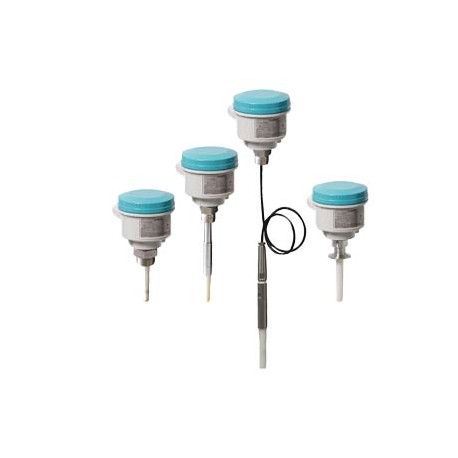

7ML5632-8EC00-1GC0 SIEMENS Pointek CLS200 RF Capacitance point level switch, sanitary rod design. Detects le..
$0.00USD
3434 in stock
Key Specifications
:VersionClassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03
EAN:Not available
UPC:Not available
eClass:5.1
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03 | |
| EAN | Not available |
| UPC | Not available |
| eClass | 5.1 |
| Price Group | 8L3 |
| Metal Factor | None |
| Product Group | 4717 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90261029 |
| Product family | Not available |
| Net Weight (kg) | 2,000 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | FI01-4 |
| Packaging Quantity | 1 |
| Packaging Dimension | Not available |
| Product Description | Pointek CLS200 RF Capacitance point level switch, sanitary rod design. Detects level and interface in liquids, solids, slurries, and foam. Adjustable, 5.5 m (18.04 ft), insertion, adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Sanitary 316L (1.4404) stainless steel: 3" sanitary fitting clamp Probe length: (length from process connection face): Extended rod, 350 mm (13.78") Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: 316L Stainless Steel with PVDF probe body Approvals: Explosion Proof Enclosure With IS Probe CSA/FM Class I, Div. 1, Gr. A, B, C, D CSA/FM Class II, Div. 1, Gr. E, F, G CSA/FM Class III T4 Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP68 . |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | On request |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Product Dimensions (W x L x H) | Not available |
| Article Number (Market Facing Number) | 7ML5632-8EC00-1GC0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
. Pointek CLS200 RF Capacitive Level Switch, Variant with Sanitary Rod. Level and level/interface detection of liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensiti
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
