In Stock Hot Product
7ML5632-8CE10-1CA0

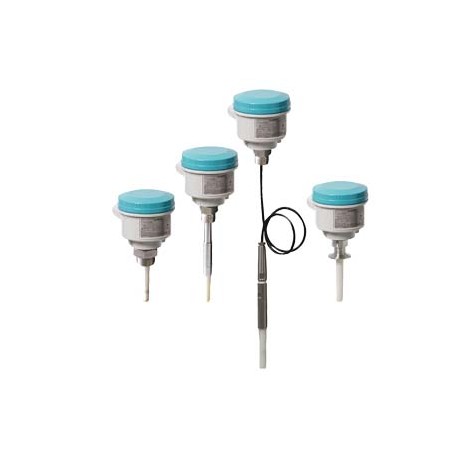

7ML5632-8CE10-1CA0 SIEMENS Pointek CLS200 RF level Switch capacitive, variant with rod health. Level detecti..
$1,363.30USD
51 in stock
Key Specifications
:versionclassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03
Ean:unavailable
Upc:unavailable
eClass:5.1
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| versionclassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03 | |
| Ean | unavailable |
| Upc | unavailable |
| eClass | 5.1 |
| Metal factor | none |
| Delivery time | 15 Day/Days |
| Product class | C: manufactured products produced on demand, which cannot be reused or re-utilised or returned against credit. |
| Product group | 4717 |
| Commodity code | 90261029 |
| Product family | unavailable |
| Net weight (kg) | 2,000 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | FI01-4 |
| Packaging dimension | unavailable |
| Product description | Pointek CLS200 RF Switch. capacitive level, variant with sanitary rod. Level and level/interface detection of liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensitivity adjustable, with the ability to ignore build-up in the probe. Process connection: Stainless steel. Sanitary No. Mat. 1.4404/316L 2" Sanitary Clamp Special Version: (length measured from process connection face): Rod extension, 750 mm (29.53") Thermal insulation: With thermal insulation (for process connection temperatures above +85 °C (+185 F)) Seals on the process side: FKM Probe material: stainless steel, mat no. 1.4404/316L with PVDF probe approvals: Ex protection for CE dust, C-TICK, ATEX II 1/2 D T100 C Case and lid: aluminium, epoxy coated, 2 x 1/2" NPT via adapter - Cable entry, IP65 |
| Unit of measurement | 1 piece |
| Quantity per package | 1 |
| Product Lifecycle (PLM) | PM300:Active product |
| Export control regulations | ECCN : EAR99 / AL : N |
| Item number (market number) | 7ML5632-8CE10-1CA0 |
| Product Dimensions (W x L x H) | unavailable |
| Unit of measurement package size | unavailable |
| Price group / House and local price group | 39J/8L3 |
| Compliance with the substance restrictions according to RoHS directive | RoHS compliant since: 07/20/17 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationAus der Lieferkette und den von uns etablierten Verfahren zur Überprüfung unserer Erzeugnisse auf besorgniserregende Stoffe liegen derzeit keine Informationen zu SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) vor. Wir gleichen unsere Erzeugnisse regelmäßig entsprechend den Erfordernissen der REACH-Verordnung mit uns vorliegenden Informationen der vorgeschalteten Anwender bezüglich der in der Kandidatenliste angegebenen Stoffe ab. Sobald uns neue Erkenntnisse vorliegen, werden unsere Informationen an Sie entsprechend aktualisiert. |
| Mandatory category of return of electrical and electronic equipment after use | Yes |
Product Description
. Pointek CLS200 RF Capacitive Level Switch, Variant with Sanitary Rod. Level and level/interface detection of liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensiti
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
