7ML5440-1AA00-1BC1

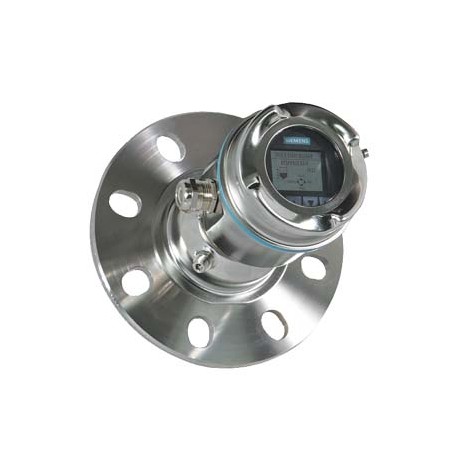

7ML5440-1AA00-1BC1 SIEMENS SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-co..
$0.00USD
3568 in stock
Key Specifications
:VersionClassificationeClass1227-20-05-05eClass1427-20-05-05eClass627-20-05-05eClass7.127-20-05-05eClass827-20-05-05eClass927-20-05-05eClass9.127-20-05-05ETIM7EC002995ETIM8EC002995ETIM9EC002995
EAN:Not available
UPC:Not available
ETIM:7
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass1227-20-05-05eClass1427-20-05-05eClass627-20-05-05eClass7.127-20-05-05eClass827-20-05-05eClass927-20-05-05eClass9.127-20-05-05ETIM7EC002995ETIM8EC002995ETIM9EC002995 | |
| EAN | Not available |
| UPC | Not available |
| ETIM | 7 |
| Notes | Sucessor:Device is in phase out, use 7ML755 or 7ML758. Contact support if required. |
| eClass | 12 |
| Group Code | R3P0 |
| SCIP number | |
| Metal Factor | None |
| Product Group | 4716 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90261029 |
| Product family | SITRANS LR560 |
| Net Weight (kg) | 6,000 Kg |
| Country of origin | Canada |
| LKZ_FDB/ CatalogID | FI01-4 |
| PLM Effective Date | Product phase-out since: 25.03.2024 |
| Packaging Quantity | 1 |
| Product Description | SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-contact, 100 m (328 ft) range, for general solids applications. Measurement and process temperature range: 100m (328 ft) max range, -40 C degrees to +200 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 3" / 80 mm, 304 stainless steel Enclosure (with cable inlet): Stainless Steel, 1 X 1/2" NPT . Label: Sitrans LR560 Pressure Rating: 3 bar g (40 psi g) maximum Output/communication: PROFIBUS PA Approvals: ATEX II 1 D 1/2 D 2 D Ex ta IIIC T139°C Da, ATEX II 3G Ex ic IIC T4 Gc, ATEX II 3G Ex ec IIC T4 Gc; UKEX II 1D 1/2D 2D Ex ta IIIC T139°C Da, UKEX II 3G Ex ic IIC T4 Gc, UKEX II 3G Ex ec IIC T4 Gc; INMETRO Ex nA IIC T4 Gc, INMETRO Ex ta IIIC T139°C Da, IP68; IECEx Ex ec IIC T4 Gc, IECEx Ex ic IIC T4 Gc, IECEx Ex ta IIIC T139°C Da, IP68; CE, UKCA, RED, RCM Local display interface: Without LDI (local display interface) |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Export Control Regulations | ECCN : EAR99I / AL : N |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Article Number (Market Facing Number) | 7ML5440-1AA00-1BC1 |
| Estimated dispatch time (Working Days) | 5 Day/Days |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 8L2 / 8L2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 10.01.2003 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
SITRANS LR560 Recessed Lens Radar Level Transmitter - continuous, non-contact measurement, 100 m (328 ft) range, for general applications with solids. Measuring range and process temperature 100 m max
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
