7ML5423-1CC51-3BC0

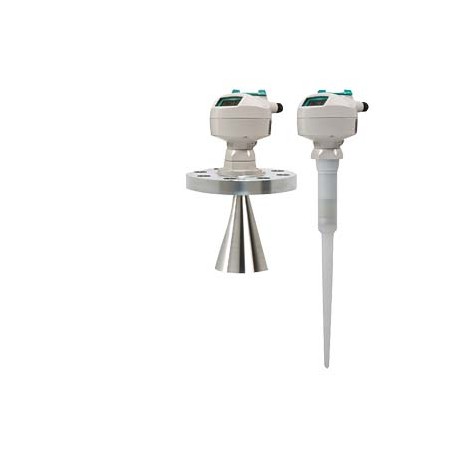

7ML5423-1CC51-3BC0 SIEMENS SITRANS LR200 Radar level transmitter with PTFE rod: continuous, non-contact, 20 ..
$0.00USD
3501 in stock
Key Specifications
:VersionClassificationeClass1227-20-05-05eClass1427-20-05-05eClass627-20-05-05eClass7.127-20-05-05eClass827-20-05-05eClass927-20-05-05eClass9.127-20-05-05ETIM7EC002995ETIM8EC002995ETIM9EC002995
EAN:Not available
UPC:Not available
ETIM:7
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass1227-20-05-05eClass1427-20-05-05eClass627-20-05-05eClass7.127-20-05-05eClass827-20-05-05eClass927-20-05-05eClass9.127-20-05-05ETIM7EC002995ETIM8EC002995ETIM9EC002995 | |
| EAN | Not available |
| UPC | Not available |
| ETIM | 7 |
| eClass | 12 |
| Group Code | R3P0 |
| SCIP number | |
| Metal Factor | None |
| Product Group | 4716 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90261029 |
| Product family | SITRANS LR200 |
| Net Weight (kg) | 2,000 Kg |
| Country of origin | Canada |
| LKZ_FDB/ CatalogID | FI01-4 |
| PLM Effective Date | Product phase-out since: 25.03.2024 |
| Packaging Quantity | 1 |
| Product Description | SITRANS LR200 Radar level transmitter with PTFE rod: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Antenna material: PTFE Process Connection Flat faced flanges (316L stainless steel): DN 100 PN 40, Type B1, flat faced Antenna Extention: 200 mm (8 inch) extension, 316 stainless steel shield Process Seal/Gasket: FKM O-ring, not available for FF flanges with Antenna options 0,1,2 Enclosure/Cable inlet: Aluminium, Epoxy paint, 2 x M20 x1.5 Communication/Output: PROFIBUS PA Approvals: Intrinsically Safe, CSA Class I, II, Div 1, Groups A,B,C,D,E,F,G, Industry Canada Pressure rating: rating per pressure/temperature curves in instruction manual |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Export Control Regulations | ECCN : EAR99I / AL : N |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Article Number (Market Facing Number) | 7ML5423-1CC51-3BC0 |
| Estimated dispatch time (Working Days) | 39 Day/Days |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 8L2 / 8L2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
SITRANS LR200 PTFE Rod Radar Level Transmitter - Continuous, non-contact, 20 m (66 ft) range measurement for liquids and slurries. Antenna material: PTFE Process connection Flat flanges (316L stainles
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
