In Stock Hot Product
7MF1567-3CA00-2CB1

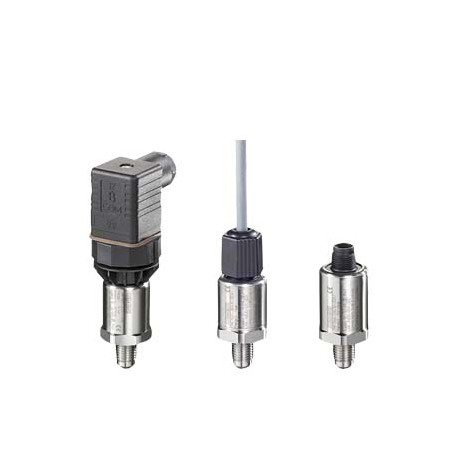

7MF1567-3CA00-2CB1 SIEMENS SITRANS P220 Transmitters for pressure and absolute pressure fully welded version..
$0.00USD
4072 in stock
Key Specifications
:VersionClassificationeClass5.127-20-06-14eClass627-20-06-14eClass7.127-20-06-14eClass827-20-06-14eClass927-20-06-14eClass9.127-20-06-14UNSPSC1532-15-17-03
EAN:Not available
UPC:Not available
UNSPSC:15
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass5.127-20-06-14eClass627-20-06-14eClass7.127-20-06-14eClass827-20-06-14eClass927-20-06-14eClass9.127-20-06-14UNSPSC1532-15-17-03 | |
| EAN | Not available |
| UPC | Not available |
| UNSPSC | 15 |
| eClass | 5.1 |
| List Price | Show prices |
| Price Group | 8P4 |
| Metal Factor | None |
| Product Group | 4778 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90262020 |
| Customer Price | Show prices |
| Product family | Not available |
| Net Weight (kg) | 0,2 Kg |
| Country of origin | Switzerland |
| LKZ_FDB/ CatalogID | FI01-1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 87,00 x 156,00 x 41,00 |
| Product Description | SITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications Non-linearity: 0,25 Percent (typically) wetted parts material: stainless steel; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: round plug M12 to IEC 61076-2-101 Process connection: G1/4" male thread to EN837-1 (1/4"-BSP male) Special version for Flender Plug M12 IEC 61076-2-101, pin 1:+, pin 4:- Process connectopn G1/4 DIN 3852 E + press.source.red Standard version |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : N / AL : N |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| Article Number (Market Facing Number) | 7MF1567-3CA00-2CB1 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
