In Stock Hot Product
7ME6820-2YJ02-2BS0

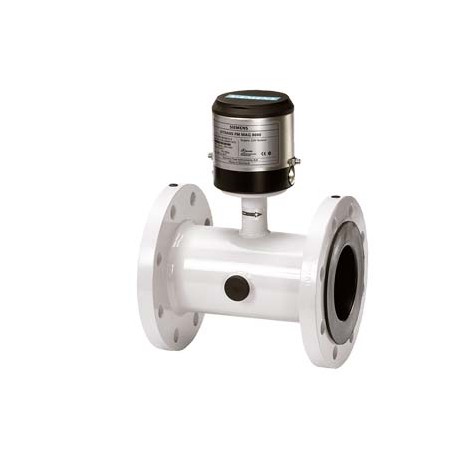

7ME6820-2YJ02-2BS0 SIEMENS SITRANS FM MAG 8000 CT Battery-operated electromagnetic flowmeter, flanged, custo..
$0.00USD
3558 in stock
Key Specifications
:VersionClassificationeClass1227-20-04-01eClass1427-20-04-01eClass627-20-04-01eClass7.127-20-04-01eClass827-20-04-01eClass927-20-04-01eClass9.127-20-04-01ETIM7EC002991ETIM8EC002991ETIM9EC002991
EAN:Not available
UPC:Not available
ETIM:7
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass1227-20-04-01eClass1427-20-04-01eClass627-20-04-01eClass7.127-20-04-01eClass827-20-04-01eClass927-20-04-01eClass9.127-20-04-01ETIM7EC002991ETIM8EC002991ETIM9EC002991 | |
| EAN | Not available |
| UPC | Not available |
| ETIM | 7 |
| eClass | 12 |
| Group Code | R3P3 |
| SCIP number | |
| Metal Factor | None |
| Product Group | 4844 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90261021 |
| Product family | SITRANS FM MAG 8000 |
| Net Weight (kg) | 10,000 Kg |
| Country of origin | France |
| LKZ_FDB/ CatalogID | FI01-3 |
| Packaging Quantity | 1 |
| Product Description | SITRANS FM MAG 8000 CT Battery-operated electromagnetic flowmeter, flanged, custody transfer approved. Suitable for volume flow measurement of liquids (conductive) and water applications within abstraction, distribution network, revenue metering and custody transfer metering. . DN50, 2 Inch ANSI 16.5 Class 150 EPDM liner and Hastelloy electrodes, corrosion-resistant coating of category C4 Q3/Q1 = 63 MI-001 verification Region version: USA Display: m3, m3/h based 60 Hz filter Basic version remote 5m Mounted sensor cables w. plugs 3G/UMTS module for MAG8000 with remote antenna cable(5m) Internal battery supply (battery not included) |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : N / AL : N |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Article Number (Market Facing Number) | 7ME6820-2YJ02-2BS0 |
| Estimated dispatch time (Working Days) | On request |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Region Specific PriceGroup / Headquarter Price Group | 8F2 / 8F2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
SITRANS FM MAG 8000 CT Battery-operated electromagnetic flow sensor, with flange, approved for transactions with verification. Suitable for continuous measurement of the volumetric flow of liquids (co
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
