In Stock Hot Product
7MC8005-5CB40-1GF0

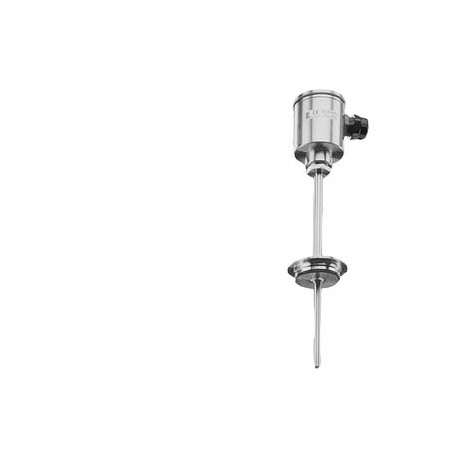

7MC8005-5CB40-1GF0 SIEMENS Temperature sensor SITRANS TS300 for food, pharmaceuticals and biotechnology, mod..
$475.91USD
70 in stock
Key Specifications
:VersionClassificationeClass627-20-02-08eClass7.127-20-02-08eClass827-20-02-08eClass927-20-02-08eClass9.127-20-02-08UNSPSC1532-15-17-03
EAN:Not available
UPC:Not available
UNSPSC:15
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-20-02-08eClass7.127-20-02-08eClass827-20-02-08eClass927-20-02-08eClass9.127-20-02-08UNSPSC1532-15-17-03 | |
| EAN | Not available |
| UPC | Not available |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R3P0 |
| Metal Factor | None |
| Product Group | 4780 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90251900 |
| Product family | Modular design |
| Net Weight (kg) | 2,000 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | FI01-2 |
| Packaging Quantity | 1 |
| Product Description | Temperature sensor SITRANS TS300 for food, pharmaceuticals and biotechnology, modular design Head type: BS0; SS; threaded lid; IP67 process connection: material 1.4404 / 316L;clamp connection (PN16) suitable for: D=50,5 mm: DN 25/33,7/38 (ISO 2852) and DN 25/32/40 (DIN 32676) and 1" / 1 1/2" (TRI-CLAMP); Protective tube: F1 = 9 mm tapered tip, F3 = 5 DI. X 20 mm Measuring insert: 3 /3.2 mm, mineral insulated . Neck length: 80 mm Mounting length: 161...250mm (6.34...9.84inch); Initial: 250mm(9.84inch) Sensor: 1 x Pt 100, class A, 3-wire . |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : N / AL : N |
| Standard lead time ex-works | 23 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Article Number (Market Facing Number) | 7MC8005-5CB40-1GF0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 8TO / 8TO |
| Compliance with the substance restrictions according to RoHS directive | Since: 07.02.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
