7LQ3360

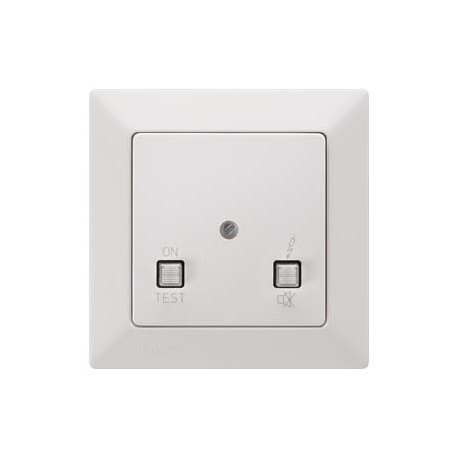

7LQ3360 SIEMENS test and signaling combination for insulation monitors 24V AC/DC 50/60Hz
$0.00USD
3214 in stock
Key Specifications
:Value
EAN:4001869388083
UPC:Not available
Color:white
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869388083 |
| UPC | Not available |
| Color | white |
| Depth | 35 mm |
| Notes | Product is no longer availableSucessor:Further information about local contact: www.siemens.com/lowvoltage/contactIf you need assistance please contact our local Siemens office |
| Width | 80 mm |
| Height | 80 mm |
| Material | Thermoplast |
| Group Code | P310 |
| Price Group | 13C |
| ● maximum | 55 °C |
| ● minimum | -5 °C |
| Metal Factor | L-P----- |
| Product Group | 5527 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85312020 |
| Product family | Not available |
| Net Weight (kg) | 0,135 Kg |
| ● Rated value | 24 V |
| Model (EF000010) | Signalling and operating panel |
| RAL color number | RAL 9010 |
| Colour (EF000007) | White |
| Country of origin | Germany |
| Operating voltage | |
| Product component | |
| ● initial value | 10 Hz |
| Display (EF000360) | None |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product discontinued since: 15.03.2019 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● Labeling field | No |
| Material (EF002169) | Plastic |
| Packaging Dimension | 91,00 x 110,00 x 62,00 |
| Product Description | test and signaling combination for insulation monitors 24V AC/DC 50/60Hz |
| Product designation | Signaling and test combination |
| Protection class IP | IP30 |
| Type of composition | Operator control with frame |
| ● Full-scale value | 55 Hz |
| Design of the product | for insulation monitor |
| Operating temperature | |
| Text field (EF001515) | false |
| Environmental category | 05 / 055 / 04 |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| design of the interface | Other types |
| Bus system KNX (EF001499) | false |
| Bus system LON (EF003831) | false |
| Touch function (EF008086) | false |
| Export Control Regulations | ECCN : N / AL : N |
| Mounting method (EF000003) | - |
| Material / of the enclosure | plastic |
| Material quality (EF001257) | Duroplast |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Other bus systems (EF003811) | None |
| Package size unit of measure | MM |
| Designation / of the terminal | EN 50005 |
| type of electrical connection | Box terminals with wire protection |
| ● Integrated / Bus coupling | No |
| Bus system Powernet (EF001501) | false |
| Product Dimensions (W x L x H) | Not available |
| Assembly arrangement (EF000005) | Control element with cover frame |
| Bus system KNX radio (EF008855) | false |
| RAL-number (similar) (EF003882) | 9010 |
| Additional interfaces (EF008116) | Other |
| Bus connection included (EF001504) | false |
| design of the display / touchscreen | No |
| Bus system radio frequent (EF001500) | false |
| Degree of protection (IP) (EF005474) | IP30 |
| Article Number (Market Facing Number) | 7LQ3360 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Radio frequent bidirectional (EF009466) | - |
| ● Protection class IP / of the terminal | 20 |
| Design of bus system message panel and operating panel | Signaling and operator panel |
| Deflection amplitude / for vibration test / during operation | 0.35 mm |
| Operating mode / for monitoring rooms used for medical purposes | Continuous operation |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.02.2008 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Frequency / of the frequency cycle / for vibration test / for acceleration reference value / during operation |
