7LF6111

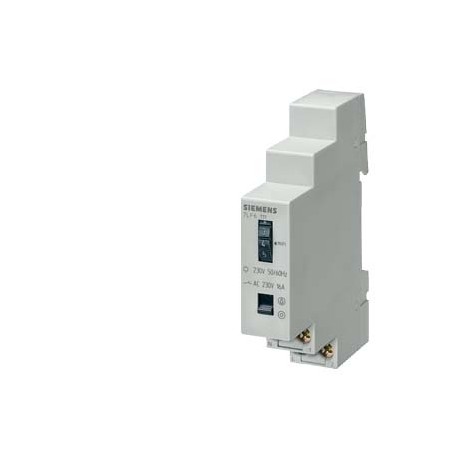

7LF6111 SIEMENS stairwell lighting timer 4-wire circuit L- or N-momentary resettable for 230V contact 2000W
$0.00USD
3164 in stock
Key Specifications
:Value
EAN:4001869310916
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869310916 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 64 mm |
| Width | 18 mm |
| Height | 90 mm |
| eClass | 6 |
| Group Code | P310 |
| net weight | 88 g |
| Price Group | 13D |
| ● maximum | 230 V |
| ● minimum | 230 V |
| Metal Factor | None |
| Mounting type | DIN-busbar |
| Product Group | 5523 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 91070000 |
| Product family | 7LF6 Timers for Buildings |
| Control voltage | |
| Net Weight (kg) | 0,084 Kg |
| Type of voltage | |
| ● Rated value | 16 A |
| Country of origin | Germany |
| ● initial value | 0.5 min |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 31.05.2019 |
| Packaging Quantity | 1 |
| installation depth | 64 mm |
| product brand name | SENTRON |
| ● at cos phi 0.6 | 16 A |
| Function (EF000030) | Mechanical |
| Packaging Dimension | 20,00 x 93,00 x 75,00 |
| Product Description | stairwell lighting timer 4-wire circuit L- or N-momentary resettable for 230V contact 2000W |
| Product designation | Timers |
| ● Full-scale value | 10 min |
| Design of the product | Staircase lighting timer |
| Number of CO contacts | 0 |
| Number of NC contacts | 0 |
| Number of NO contacts | 1 |
| Repetitive (EF002962) | Repetitive |
| Switch-off prewarning | without |
| number of width units | 1 |
| Supply voltage / at AC | |
| ● _1 / initial value | 230 V |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Release-delay (EF001129) | ['30.0', '600.0'] |
| Wiring system (EF002960) | 3 and 4 wire configuration |
| ● of control voltage_1 | AC |
| Built-in depth (EF000218) | 64.0 |
| Control voltage frequency | |
| Declaration of Conformity | other |
| Supply voltage (EF004127) | ['230.0', '230.0'] |
| adjustable OFF-delay time | |
| ● _1 / Full-scale value | 230 V |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| Switching capacity current | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Control voltage 1 (EF002952) | ['230', '230'] |
| Control voltage 2 (EF002953) | ['-', '-'] |
| Package size unit of measure | MM |
| Short-circuit current rating | 700 A |
| Product Dimensions (W x L x H) | Not available |
| Rated switch current (EF006706) | 16 |
| Switching capacity apparent power | |
| Type of control voltage 1 (EF002954) | AC |
| Type of control voltage 2 (EF002955) | AC/DC |
| Article Number (Market Facing Number) | 7LF6111 |
| Max. load fluorescent lamp (EF004971) | 1160 |
| Consumed current / of the light source | 50 mA |
| Frequency control voltage 1 (EF002956) | ['50.0', '50.0'] |
| Frequency control voltage 2 (EF002957) | - |
| Max. incandescent lamp load (EF004952) | 2000 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Pre-warning of switching-off (EF002961) | None |
| Type of voltage / of the supply voltage | AC |
| Push button glow-lamp current (EF006707) | 50.0 |
| Voltage type of supply voltage (EF002991) | AC |
| ● Reference code / acc. to DIN EN 81346-2 | K |
| ● for uncompensated fluorescent lamp load | 1 160 V·A |
| ● reference code / acc. to DIN EN 61346-2 | K |
| Current surge function selectable (EF008074) | - |
| Width in number of modular spacings (EF002950) | 1 |
| ● for fluorescent lamp load with DUO circuit | 1 160 V·A |
| Staircase lighting timing switch reset function | resettable |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 1160 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Connection method for staircase lighting timer switch | 3- and 4-wire-circuit |
| Manner of function / of the staircase lighting switch | manual |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Declaration of ConformityotherEnvironmental Confirmations | Declaration of Conformity |
| Switching capacity active power / with filament lamp load | 2 000 W |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 5 W |
