7LF5301-0

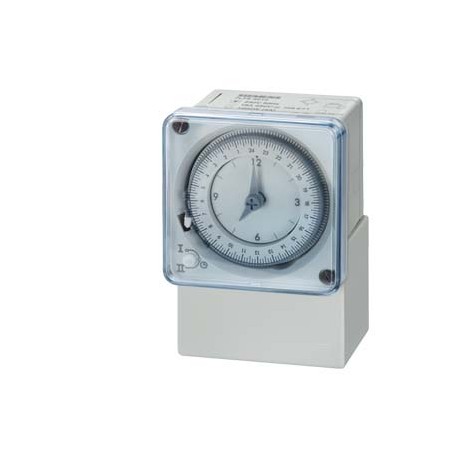

7LF5301-0 SIEMENS Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting
$0.00USD
4336 in stock
Key Specifications
:
EAN:4001869335704
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869335704 |
| UPC | Not available |
| ETIM | 5 |
| depth | 34 mm |
| width | 69 mm |
| eClass | 6 |
| height | 110 mm |
| Group Code | P310 |
| net weight | 196 g |
| ● maximum | 50 Hz |
| ● minimum | 50 Hz |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | None |
| Product Group | 5523 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 91070000 |
| Product family | 7LF5 Mechanical Time Switches |
| Net Weight (kg) | 0,198 Kg |
| Depth (EF000049) | 34.0 |
| Width (EF000008) | 69.0 |
| fastening method | others |
| product function | |
| Country of origin | Germany |
| Height (EF000040) | 110.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| number of channels | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 74,00 x 110,00 x 63,00 |
| Product Description | Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting |
| product designation | Timers |
| protection class IP | IP20 |
| ● direct operation | Yes |
| ● line-synchronous | Yes |
| design of the product | Day |
| ● quartz-controlled | No |
| principle of operation | |
| ● 24 hr time program | Yes |
| 24 h program (EF002965) | true |
| Contact type (EF001587) | Change-over contact |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● 60 min time program | No |
| ● annual time program | No |
| ● weekly time program | No |
| General Product Approval | Declaration of Conformity |
| supply voltage frequency | |
| Annual program (EF001185) | false |
| Supply voltage (EF004127) | ['230', '230'] |
| Weekly program (EF001184) | false |
| 60 min. program (EF002964) | false |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Other |
| ● switching preselection | Yes |
| Accuracy per day (EF006325) | - |
| Environmental Confirmations | |
| Manual operation (EF002978) | true |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Autonomy in hours (EF004721) | - |
| Autonomy in years (EF004720) | - |
| Mains synchronous (EF002973) | true |
| Package size unit of measure | MM |
| Quartz controlled (EF002974) | false |
| Number of channels (EF000259) | 1 |
| supply voltage / initial value | 230 V |
| design of the switching function | CO contact |
| Program shift divide 1 (EF005181) | 10.0 |
| Program shift divide 2 (EF005182) | - |
| Switching preselection (EF002979) | true |
| supply voltage / full-scale value | 230 V |
| Frequency supply voltage (EF004687) | ['50', '50'] |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 7LF5301-0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of voltage / of the supply voltage | AC |
| Potential free switch contact (EF003626) | true |
| ● automatic daylight-saving adjustment | No |
| Voltage type of supply voltage (EF002991) | AC |
| Shortest switching time channel 1 (EF004855) | 30.0 |
| Shortest switching time channel 2 (EF004856) | - |
| product feature / floating switching contact | Yes |
| Width in number of modular spacings (EF002950) | - |
| shortest switching time interval / of channel 1 | 30 min |
| Nominal switching current at 250 V AC (EF005126) | 16 |
| Automatic switching summer-/winter time (EF002977) | false |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| switching capacity current / at AC / at 250 V / rated value | 16 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneousotherEnvironmental Confirmations | General Product Approval |
Product Description
Mechanical time switch w/synchronous motor, daily dial, 1 switched contact, 230V/50Hz, 16A, p/surface mount. Cancelations and returns limited. Consult conditions.
