7LF5300-6

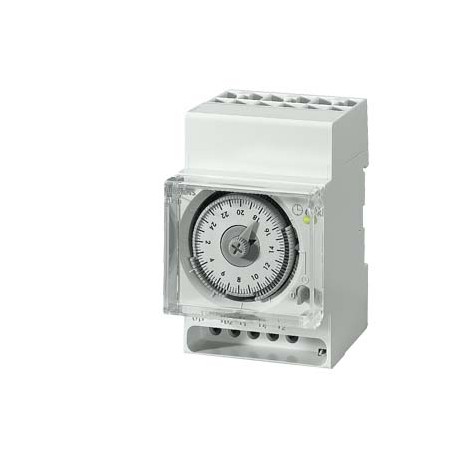

7LF5300-6 SIEMENS Synchronous time switch Week 1 change-over contact 230 V/50 Hz 3 MW
$0.00USD
4395 in stock
Key Specifications
:
EAN:4001869335759
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869335759 |
| UPC | Not available |
| ETIM | 5 |
| depth | 64 mm |
| width | 53 mm |
| eClass | 6 |
| height | 83 mm |
| Group Code | P310 |
| net weight | 153 g |
| ● maximum | 50 Hz |
| ● minimum | 50 Hz |
| Confirmation | |
| Date5/7/2022 | |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5523 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 91070000 |
| Product family | 7LF5 Mechanical Time Switches |
| Net Weight (kg) | 0,150 Kg |
| Depth (EF000049) | 64.0 |
| Width (EF000008) | 53.0 |
| fastening method | DIN rail |
| product function | |
| Country of origin | Germany |
| Height (EF000040) | 83.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| number of channels | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 56,00 x 97,00 x 83,00 |
| Product Description | Synchronous time switch Week 1 change-over contact 230 V/50 Hz 3 MW |
| product designation | Timers |
| protection class IP | IP20 |
| ● direct operation | Yes |
| ● line-synchronous | Yes |
| design of the product | Week |
| ● quartz-controlled | No |
| principle of operation | |
| ● 24 hr time program | No |
| 24 h program (EF002965) | false |
| Contact type (EF001587) | Change-over contact |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● 60 min time program | No |
| ● annual time program | No |
| ● weekly time program | Yes |
| General Product Approval | Declaration of Conformity |
| supply voltage frequency | |
| Annual program (EF001185) | false |
| Supply voltage (EF004127) | ['230', '230'] |
| Weekly program (EF001184) | true |
| 60 min. program (EF002964) | false |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| ● switching preselection | Yes |
| Accuracy per day (EF006325) | - |
| Manual operation (EF002978) | true |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Autonomy in hours (EF004721) | - |
| Autonomy in years (EF004720) | - |
| Mains synchronous (EF002973) | true |
| Package size unit of measure | MM |
| Quartz controlled (EF002974) | false |
| Number of channels (EF000259) | 1 |
| number of modular width units | 3 |
| supply voltage / initial value | 230 V |
| design of the switching function | CO contact |
| Program shift divide 1 (EF005181) | 120.0 |
| Program shift divide 2 (EF005182) | - |
| Switching preselection (EF002979) | true |
| supply voltage / full-scale value | 230 V |
| Frequency supply voltage (EF004687) | ['50', '50'] |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 7LF5300-6 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of voltage / of the supply voltage | AC |
| Potential free switch contact (EF003626) | true |
| ● automatic daylight-saving adjustment | No |
| Voltage type of supply voltage (EF002991) | AC |
| Shortest switching time channel 1 (EF004855) | 240.0 |
| Shortest switching time channel 2 (EF004856) | - |
| product feature / floating switching contact | Yes |
| Width in number of modular spacings (EF002950) | 3 |
| shortest switching time interval / of channel 1 | 240 min |
| Nominal switching current at 250 V AC (EF005126) | 16 |
| Automatic switching summer-/winter time (EF002977) | false |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| switching capacity current / at AC / at 250 V / rated value | 16 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityEnvironmental ConfirmationsotherMiscellaneous | General Product Approval |
Product Description
Mechanical time switch w/synchronous motor, weekly dial, 1 switched contact, 230V/50Hz, 16A, 3mód.. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
