7LF4522-2

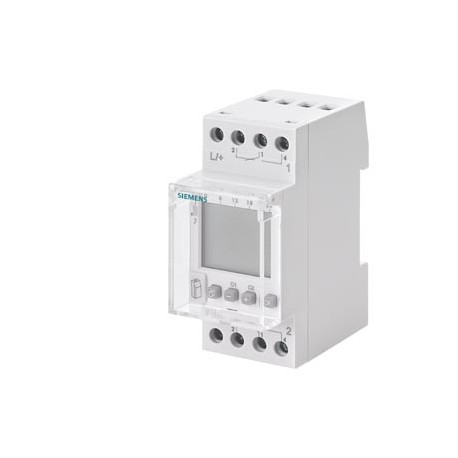

7LF4522-2 SIEMENS weekly time switch Profi digital 24 V 16A 2-channel 2MW
$0.00USD
4296 in stock
Key Specifications
:
EAN:4001869473567
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869473567 |
| UPC | Not available |
| ETIM | 5 |
| depth | 70 mm |
| width | 36 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 83 mm |
| Group Code | P310 |
| net weight | 207 g |
| ● maximum | 26 V |
| ● minimum | 24 V |
| Confirmation | |
| Date5/4/2022 | |
| Metal Factor | LOA----- |
| Product Group | 5523 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 91070000 |
| Product family | 7LF4 Digital Time Switches |
| Net Weight (kg) | 0,191 Kg |
| product feature | |
| Depth (EF000049) | 70.0 |
| Width (EF000008) | 36.0 |
| fastening method | DIN rail |
| product function | |
| Country of origin | Germany |
| Height (EF000040) | 83.0 |
| ● Astro program | No |
| ● pulse program | Yes |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| accuracy / per day | 0.1 s |
| number of channels | 2 |
| product brand name | SENTRON |
| Packaging Dimension | 56,00 x 97,00 x 83,00 |
| Product Description | weekly time switch Profi digital 24 V 16A 2-channel 2MW |
| product designation | Time-delay switch |
| protection class IP | IP20 |
| ● direct operation | Yes |
| ● line-synchronous | Yes |
| ● radio-controlled | No |
| Hour meter (EF004533) | true |
| design of the product | Digital time switch Profi |
| ● quartz-controlled | No |
| number of memory slots | 28 |
| principle of operation | |
| ● 24 hr time program | Yes |
| 24 h program (EF002965) | true |
| Contact type (EF001587) | Change-over contact |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● 60 min time program | Yes |
| ● annual time program | No |
| ● random time program | Yes |
| ● weekly time program | Yes |
| Astro program (EF000224) | false |
| Cycle program (EF002971) | true |
| General Product Approval | Declaration of Conformity |
| ● holiday time program | Yes |
| Annual program (EF001185) | false |
| Random program (EF002969) | true |
| Supply voltage (EF004127) | ['-', '-'] |
| Weekly program (EF001184) | true |
| ● cyclical time program | Yes |
| ● external switch input | No |
| 60 min. program (EF002964) | true |
| Export Control Regulations | AL : N / ECCN : N |
| Holiday program (EF002968) | true |
| Impulse program (EF002970) | true |
| Mounting method (EF000003) | DIN rail |
| ● switching preselection | Yes |
| Accuracy per day (EF006325) | 0.1 |
| Dangerous Goods Information | |
| Manual operation (EF002978) | true |
| Radio-controlled (EF000888) | false |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| With memory card (EF009768) | - |
| ● operating hours counter | Yes |
| Autonomy in hours (EF004721) | - |
| Autonomy in years (EF004720) | - |
| Mains synchronous (EF002973) | true |
| Package size unit of measure | MM |
| Quartz controlled (EF002974) | false |
| ● text guidance in display | Yes |
| Number of channels (EF000259) | 2 |
| number of modular width units | 2 |
| ● floating switching contact | Yes |
| External programming (EF003846) | - |
| design of the switching function | CO contact |
| Switching preselection (EF002979) | true |
| ● for rigid conductor / maximum | 4 mm² |
| ● for rigid conductor / minimum | 1.5 mm² |
| supply voltage frequency / maximum | 60 Hz |
| Frequency supply voltage (EF004687) | ['0', '60'] |
| Radio-controlled (DCF77) (EF003850) | - |
| Text guidance in display (EF005341) | true |
| Degree of protection (IP) (EF005474) | IP20 |
| External pushbutton input (EF007754) | false |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 7LF4522-2 |
| Number of memory locations (EF000203) | 28 |
| control voltage / at AC / rated value | |
| control voltage / at DC / rated value | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| operating voltage / at AC / rated value | 250 V |
| type of voltage / of the supply voltage | AC/DC |
| Potential free switch contact (EF003626) | true |
| ● automatic daylight-saving adjustment | Yes |
| Voltage type of supply voltage (EF002991) | AC/DC |
| GPS (global positioning system) (EF002753) | - |
| number of terminals / with cross-head screw | 1 |
| Shortest switching time channel 1 (EF004855) | 0.016666667 |
| Shortest switching time channel 2 (EF004856) | - |
| Width in number of modular spacings (EF002950) | 2 |
| overvoltage category / according to IEC 61010-1 | III |
| shortest switching time interval / of channel 1 | 1 s |
| Nominal switching current at 250 V AC (EF005126) | 16 |
| Automatic switching summer-/winter time (EF002977) | true |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| connectable conductor cross-section / in main circuit | |
| switching capacity current / at AC / at 250 V / rated value | 16 A |
| ● for flexible conductor / with core end processing / maximum | 2.5 mm² |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.12.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.5 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneousDangerous GoodDangerous Goods Information | General Product Approval |
Product Description
Profi 2.0 digital time switch, 2 channels, weekly program, 24V AC, 16A, 2 modem.. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
