7LF4501-5

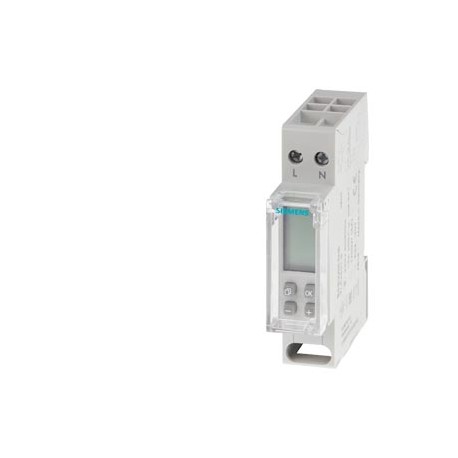

7LF4501-5 SIEMENS weekly time switch, mini dig. 230V AC, 1 channel, 1MW
$0.00USD
4106 in stock
Key Specifications
:
EAN:4001869549835
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869549835 |
| UPC | Not available |
| ETIM | 5 |
| depth | 64 mm |
| width | 18 mm |
| eClass | 6 |
| height | 83 mm |
| Group Code | P310 |
| ● maximum | 250 V |
| ● minimum | 250 V |
| Confirmation | |
| Metal Factor | None |
| Date5/10/2022 | |
| Product Group | 5523 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 91070000 |
| Product family | 7LF4 Digital Time Switches |
| Net Weight (kg) | 0,089 Kg |
| product feature | |
| fastening method | DIN rail |
| product function | |
| Country of origin | Germany |
| ● Astro program | No |
| ● pulse program | No |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| accuracy / per day | 1 s |
| number of channels | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 56,00 x 97,00 x 83,00 |
| Product Description | weekly time switch, mini dig. 230V AC, 1 channel, 1MW |
| product designation | Time-delay switch |
| protection class IP | IP20 |
| ● direct operation | Yes |
| ● line-synchronous | No |
| ● radio-controlled | No |
| design of the product | Digital time switch Mini |
| ● quartz-controlled | No |
| number of memory slots | 28 |
| principle of operation | |
| ● 24 hr time program | Yes |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● 60 min time program | Yes |
| ● annual time program | No |
| ● random time program | No |
| ● weekly time program | Yes |
| General Product Approval | Declaration of Conformity |
| ● holiday time program | No |
| ● cyclical time program | No |
| ● external switch input | No |
| Export Control Regulations | AL : N / ECCN : N |
| ● switching preselection | Yes |
| Dangerous Goods Information | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● operating hours counter | No |
| Package size unit of measure | MM |
| ● text guidance in display | Yes |
| number of modular width units | 1 |
| ● floating switching contact | Yes |
| design of the switching function | NO contact |
| ● for rigid conductor / maximum | 4 mm² |
| ● for rigid conductor / minimum | 1.5 mm² |
| supply voltage frequency / maximum | 60 Hz |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 7LF4501-5 |
| control voltage / at AC / rated value | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| operating voltage / at AC / rated value | 250 V |
| type of voltage / of the supply voltage | AC |
| ● automatic daylight-saving adjustment | Yes |
| number of terminals / with cross-head screw | 1 |
| overvoltage category / according to IEC 61010-1 | III |
| shortest switching time interval / of channel 1 | 60 s |
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK |
| connectable conductor cross-section / in main circuit | |
| switching capacity current / at AC / at 250 V / rated value | 16 A |
| ● for flexible conductor / with core end processing / maximum | 2.5 mm² |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.12.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneousDangerous GoodDangerous Goods Information | General Product Approval |
