7LF4444-2

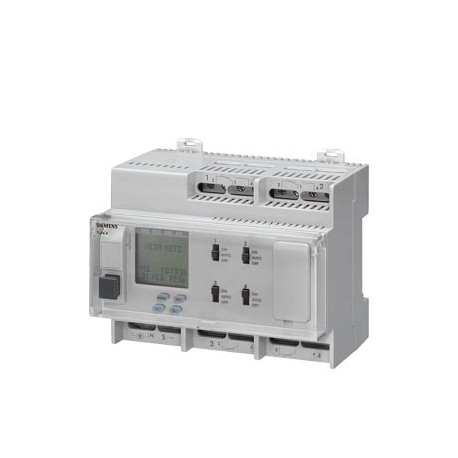

7LF4444-2 SIEMENS time switch, digital, Expert 4 channels, year, 24V 6MW
$0.00USD
4329 in stock
Key Specifications
:Value
EAN:4001869335674
UPC:Not available
Depth:64 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869335674 |
| UPC | Not available |
| Depth | 64 mm |
| Notes | Product is no longer availableSucessor:Further information about local contact: www.siemens.com/lowvoltage/contactIf you need assistance please contact our local Siemens office |
| Width | 108 mm |
| Height | 83 mm |
| Group Code | P310 |
| Price Group | 13D |
| ● maximum | 26.4 V |
| ● minimum | 21.6 V |
| Metal Factor | None |
| Mounting type | DIN rail |
| Product Group | 5523 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 91070000 |
| Product family | Not available |
| Net Weight (kg) | 0,427 Kg |
| Product feature | |
| Depth (EF000049) | 64.0 |
| Width (EF000008) | 108.0 |
| Country of origin | Germany |
| Height (EF000040) | 83.0 |
| Accuracy / per day | 0.2 s |
| LKZ_FDB/ CatalogID | LV10.1 |
| Manner of function | |
| PLM Effective Date | Product discontinued since: 31.12.2019 |
| Packaging Quantity | 1 |
| number of channels | 4 |
| product brand name | SENTRON |
| Packaging Dimension | 101,00 x 148,00 x 88,00 |
| Product Description | time switch, digital, Expert 4 channels, year, 24V 6MW |
| Product designation | Time-delay switch |
| Protection class IP | IP20 |
| ● line-synchronous | No |
| ● radio-controlled | No |
| Design of the product | Digital time switch Expert |
| Hour meter (EF004533) | true |
| number of width units | 6 |
| ● quartz-controlled | No |
| Number of memory slots | 336 |
| 24 h program (EF002965) | true |
| Contact type (EF001587) | Change-over contact |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| Astro program (EF000224) | true |
| Cycle program (EF002971) | false |
| General Product Approval | Declaration of Conformity |
| supply voltage frequency | |
| Annual program (EF001185) | true |
| Random program (EF002969) | false |
| Supply voltage (EF004127) | ['-', '-'] |
| Weekly program (EF001184) | true |
| ● external switch input | No |
| 60 min. program (EF002964) | true |
| Export Control Regulations | ECCN : N / AL : N |
| Holiday program (EF002968) | true |
| Impulse program (EF002970) | false |
| Mounting method (EF000003) | DIN rail |
| Accuracy per day (EF006325) | 0.2 |
| Manual operation (EF002978) | true |
| Radio-controlled (EF000888) | false |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| With memory card (EF009768) | - |
| Autonomy in hours (EF004721) | - |
| Autonomy in years (EF004720) | - |
| Mains synchronous (EF002973) | false |
| Package size unit of measure | MM |
| Quartz controlled (EF002974) | false |
| Number of channels (EF000259) | 4 |
| Product Dimensions (W x L x H) | Not available |
| ● floating switching contact | Yes |
| External programming (EF003846) | - |
| Design of the switching function | CO contact |
| Switching preselection (EF002979) | true |
| ● for rigid conductor / maximum | 4 mm² |
| ● for rigid conductor / minimum | 1.5 mm² |
| Frequency supply voltage (EF004687) | ['0', '60'] |
| Radio-controlled (DCF77) (EF003850) | - |
| Text guidance in display (EF005341) | true |
| Ambient temperature / during storage | |
| Degree of protection (IP) (EF005474) | IP20 |
| External pushbutton input (EF007754) | false |
| ● Product function / Astro program | Yes |
| Article Number (Market Facing Number) | 7LF4444-2 |
| Control voltage / at AC / rated value | |
| Control voltage / at DC / rated value | |
| Number of memory locations (EF000203) | 336 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● Product function / Impulse program | No |
| Operating voltage / at AC / rated value | 250 V |
| Type of voltage / of the supply voltage | AC/DC |
| ● Product function / direct operation | Yes |
| Potential free switch contact (EF003626) | true |
| Ambient temperature / maximum permissible | 55 °C |
| Ambient temperature / minimum permissible | -20 °C |
| Voltage type of supply voltage (EF002991) | AC/DC |
| GPS (global positioning system) (EF002753) | - |
| Overvoltage category / acc. to IEC 61010-1 | III |
| ● Product function / 60 min time program | Yes |
| ● Product function / Random time program | No |
| ● Product function / Weekly time program | Yes |
| ● Product function / annual time program | Yes |
| Number of terminals / with cross-head screw | 1 |
| ● Product function / 24-hour time program | Yes |
| ● Product function / Holiday time program | Yes |
| ● Reference code / acc. to DIN EN 81346-2 | K |
| ● reference code / acc. to DIN EN 61346-2 | K |
| Shortest switching time channel 1 (EF004855) | 0.016666667 |
| Shortest switching time channel 2 (EF004856) | - |
| ● Product function / Cyclical time program | No |
| ● Product function / Switching preselection | Yes |
| Width in number of modular spacings (EF002950) | 6 |
| ● product function / operating hours counter | Yes |
| Shortest switching time interval / of channel 1 | 1 s |
| ● Product function / Text guidance in display | Yes |
| Nominal switching current at 250 V AC (EF005126) | 16 |
| Automatic switching summer-/winter time (EF002977) | false |
| Connectable conductor cross-section / in main circuit | |
| Switching capacity current / at AC / at 250 V / Rated value | 16 A |
| ● Product function / Automatic daylight-saving adjustment | No |
| ● for flexible conductor / with core end processing / maximum | 2.5 mm² |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherEnvironmental Confirmations | General Product Approval |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 4 W |
