7KT5803

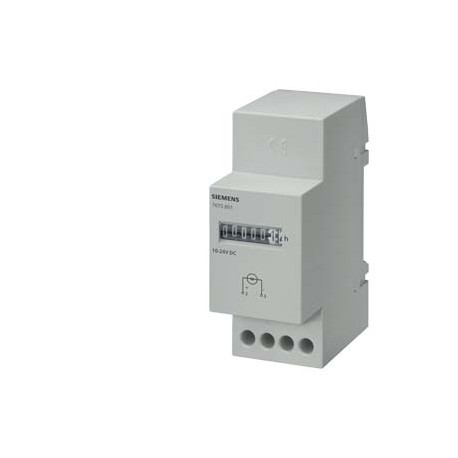

7KT5803 SIEMENS time counter, mechanical, 115V, 50Hz
$0.00USD
4636 in stock
Key Specifications
:
EAN:4001869310985
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869310985 |
| UPC | Not available |
| ETIM | 5 |
| width | 36 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 92 g |
| ● maximum | 50 Hz |
| ● minimum | 50 Hz |
| Confirmation | |
| Metal Factor | None |
| Date5/12/2022 | |
| Product Group | 5522 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| input voltage | 115 V |
| Commodity Code | 90291000 |
| Product family | Time and Pulse Counters for Standard Rail Mounting |
| reset function | no |
| Net Weight (kg) | 0,092 Kg |
| Model (EF000010) | Analogue |
| Width (EF000008) | 36.0 |
| fastening method | DIN rail |
| Country of origin | Germany |
| Height (EF000040) | 90.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 64 mm |
| product brand name | SENTRON |
| Packaging Dimension | 40,00 x 90,00 x 75,00 |
| Product Description | time counter, mechanical, 115V, 50Hz |
| product designation | Mechanical time counter |
| protection class IP | IP20 |
| Count area (EF005440) | 99999.99 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | Declaration of Conformity |
| Input voltage (EF003840) | - |
| Type of drive (EF001422) | Quartz |
| Built-in depth (EF000218) | 64.0 |
| Reset function (EF005207) | None |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| electrical input frequency | |
| width / of the front plate | 36 mm |
| Accuracy per day (EF006325) | - |
| Number of digits (EF005555) | 7 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| height / of the front plate | 45 mm |
| Front plate width (EF004689) | 36.0 |
| Package size unit of measure | MM |
| Front plate height (EF004690) | 45 |
| number of modular width units | 2 |
| type of the driving mechanism | others |
| Operation indication (EF004881) | - |
| Diameter panel opening (EF004691) | - |
| Frequency input voltage (EF006705) | ['50', '50'] |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 7KT5803 |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Mounting to max. wall thickness (EF004507) | - |
| number of characters that can be displayed | 7 |
| type of voltage / of the operating voltage | AC |
| Width in number of modular spacings (EF002950) | 2 |
| Region Specific PriceGroup / Headquarter Price Group | 15C / 1BK |
| principle of operation / of the operating hours counter | analog |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
Mechanical hour counter, 115V AC, 50Hz. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
