In Stock Hot Product
7KT1671

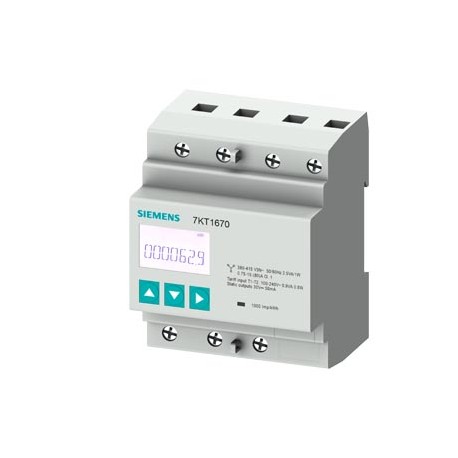

7KT1671 SIEMENS SENTRON, measuring device, 7KT PAC1600, LCD, L-L: 400 V, L-N: 230 V, 80 A, strd rail instr.,..
$0.00USD
4336 in stock
Key Specifications
:
EAN:4001869563657
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869563657 |
| UPC | Not available |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 361 g |
| ● maximum | 1 000 1/kVAh |
| ● minimum | 1 1/kVAh |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | None |
| ● backstop | Yes |
| Product Group | 5765 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90283019 |
| Product family | 7KT PAC1600 Measuring Devices |
| type of signal | S0 |
| Net Weight (kg) | 0,361 Kg |
| display version | digital |
| product function | |
| Country of origin | Italy |
| operating voltage | |
| ● blocking code | Yes |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 77,00 x 92,00 x 55,00 |
| Product Description | SENTRON, measuring device, 7KT PAC1600, LCD, L-L: 400 V, L-N: 230 V, 80 A, strd rail instr., 3-phase, S0 + MID, apparent/ active/reactive energy, self-powered, screw terminals |
| protection class IP | IP40 |
| suitability for use | Import/export |
| Voltmeter (EF006560) | true |
| Ampere meter (EF006555) | true |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Pulse counter (EF006559) | false |
| Export Control Regulations | AL : N / ECCN : N |
| Frequency meter (EF006558) | true |
| design of the pulse output | Electrical |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| short-term overload current | 80 A |
| Blind power meter (EF006556) | true |
| Package size unit of measure | MM |
| design of the energy counter | Solid-state |
| product quality / calibrated | Yes |
| number of modular width units | 4 |
| ● between L and L / maximum | 456 V |
| ● between L and L / minimum | 323 V |
| ● between N and L / maximum | 264 V |
| ● between N and L / minimum | 187 V |
| energy-related number of pulses | |
| operating frequency / rated value | |
| operational current / rated value | 80 A |
| tariff version of the energy counter | two tariff |
| Article Number (Market Facing Number) | 7KT1671 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With rotational speed meter (EF006557) | false |
| number of characters that can be displayed | 10 |
| Effective power measurement device (EF006561) | true |
| type of measured value detection / load profile | No |
| Region Specific PriceGroup / Headquarter Price Group | 15C / 1DD |
| Compliance with the substance restrictions according to RoHS directive | Since: 06.11.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
