In Stock Hot Product
7KT1260

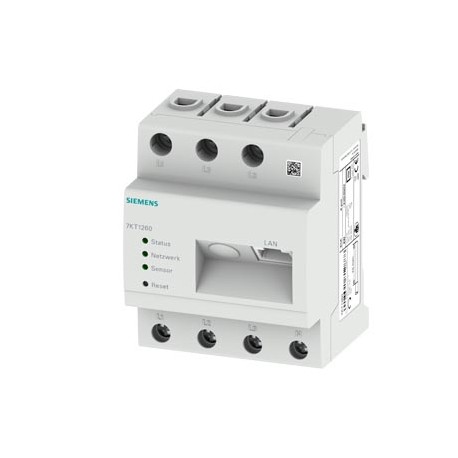

7KT1260 SIEMENS Data manager for communication between PC U Configuration via web browser, reading out via w..
$0.00USD
3836 in stock
Key Specifications
:
EAN:4001869528632
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869528632 |
| UPC | Not available |
| ETIM | 5 |
| depth | 32.7 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 85 mm |
| ● 50 Hz | Yes |
| Group Code | P310 |
| net weight | 280 g |
| ● ammeter | No |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | None |
| Product Group | 5522 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| ● voltmeter | No |
| ● wattmeter | Yes |
| Commodity Code | 85371098 |
| Product family | 7KT PAC1200 Measuring Devices |
| Net Weight (kg) | 0,350 Kg |
| Country of origin | Germany |
| ● pulse counter | No |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 70,00 x 85,00 x 32,70 |
| Product Description | Data manager for communication between PC U Configuration via web browser, reading out via web browser, APP (SmartPhone, tablet), CSV. and Powermanager, data memory |
| measuring precision | Total accuracy +/-1% (of full-scale value / class 1) |
| product designation | 7KT PAC1200 |
| suitability for use | |
| ● frequency meter | Yes |
| Voltmeter (EF006560) | false |
| Ampere meter (EF006555) | false |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Pulse counter (EF006559) | false |
| product type designation | Data manager |
| ● reactive power meter | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Frequency meter (EF006558) | true |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Blind power meter (EF006556) | true |
| Package size unit of measure | MM |
| line frequency / rated value | |
| number of modular width units | 4 |
| current / at output / rated value | 5 A |
| ● revolution measuring instrument | No |
| Article Number (Market Facing Number) | 7KT1260 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With rotational speed meter (EF006557) | false |
| measured variable current / rated value | 63 A |
| Effective power measurement device (EF006561) | true |
| Region Specific PriceGroup / Headquarter Price Group | 15C / 1BK |
| Compliance with the substance restrictions according to RoHS directive | Since: 15.12.2015 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead titanium trioxi... CAS-No. 12060-00-3 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium trioxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
SENTRON PAC 1200; DATA MANAGER TO COMMUNICATE TO A PC UP TO 96 SENSORS (MAX. 8 BARS). WEBSERVER FUNCTION FOR CONFIGURATION AND VISUALIZATION. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
