In Stock Hot Product
7KT1200

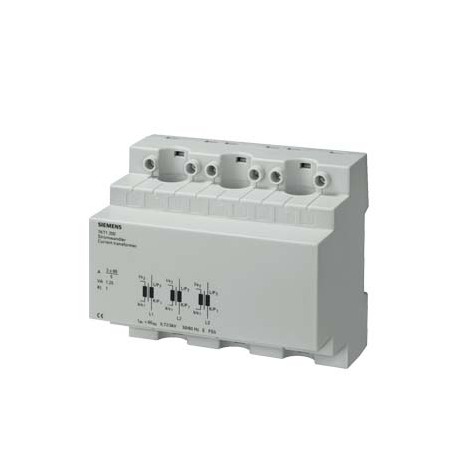

7KT1200 SIEMENS current transformer AC 3x 60/5 A
$0.00USD
3046 in stock
Key Specifications
:
EAN:4001869197302
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869197302 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 64 mm |
| width | 105 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| Confirmation | |
| Metal Factor | None |
| Date5/10/2022 | |
| Product Group | 5522 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85044082 |
| Product family | 7KT12 Current Transformers |
| Net Weight (kg) | 0,535 Kg |
| Model (EF000010) | Through-feed current converter |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 100,00 x 110,00 x 70,00 |
| Product Description | current transformer AC 3x 60/5 A |
| product designation | Current transformer |
| Calibrated (EF003706) | false |
| design of the product | AC |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Snap mounting (EF007462) | true |
| Width opening (EF004565) | - |
| Accuracy class (EF001532) | 1 |
| Height opening (EF004778) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Opening diameter (EF005153) | 13.0 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| With copper rail (EF007380) | false |
| Package size unit of measure | MM |
| Secondary connection (EF007469) | Screw connection |
| Primary rated current (EF007405) | 60 |
| With shock protection (EF008186) | false |
| Secondary rated current (EF007471) | 5 |
| Number of primary inputs (EF006947) | 1 |
| ● current / at input / rated value | 60 A |
| Article Number (Market Facing Number) | 7KT1200 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Over current limiting factor (EF007511) | FS 5 |
| Secondary rated apparent power (EF007470) | 1.25 |
| ● ratio of input current/output current | FS 5 |
| Region Specific PriceGroup / Headquarter Price Group | 15C / 1BK |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
Measurement transformer 3 phases, 6 mode, Isec 5 A, 720V AC, 3 x 60A. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
