In Stock Hot Product
7KM9900-0XA00-0AA0

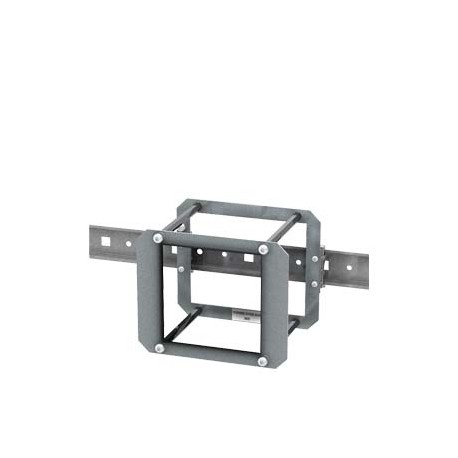

7KM9900-0XA00-0AA0 SIEMENS Adapter for For mounting onto standard mounting rail, Display facing forward, for..
$0.00USD
4625 in stock
Key Specifications
:
EAN:4011209893474
UPC:887621870492
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209893474 |
| UPC | 887621870492 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 130 mm |
| width | 143 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 118 mm |
| material | Metal / plastic |
| Group Code | P360 |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | None |
| cutout width | 92 mm |
| Product Group | 5312 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| cutout height | 92 mm |
| Commodity Code | 90309000 |
| Product family | SENTRON 7KM PAC Expansion Modules and Accessories |
| Net Weight (kg) | 0,397 Kg |
| fastening method | screw and snap-on mounting onto 32 mm and 35 mm standard mounting rail |
| Country of origin | Hungary |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Material (EF002169) | Other |
| Packaging Dimension | 139,00 x 154,00 x 29,00 |
| Product Description | Adapter for For mounting onto standard mounting rail, Display facing forward, for 7KM PAC3100 / 3200 / 4200 TMP2 |
| product designation | adapter for standard rail mounting |
| suitability for use | 7KM PAC3100 / 7KM PAC3120 /7KM PAC3200 / 7KM PAC3220 / 7KM PAC4200 |
| design of the product | Display faces forwards |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of fastening (EF002442) | Other |
| mounting rail adapter design | Straight |
| Type of DIN-rail adapter (EF008236) | Straight |
| Article Number (Market Facing Number) | 7KM9900-0XA00-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 15N / 1DD |
| Compliance with the substance restrictions according to RoHS directive | Since: 11.02.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityConfirmationMiscellaneous | General Product Approval |
