7KM9300-0AE02-0AA0

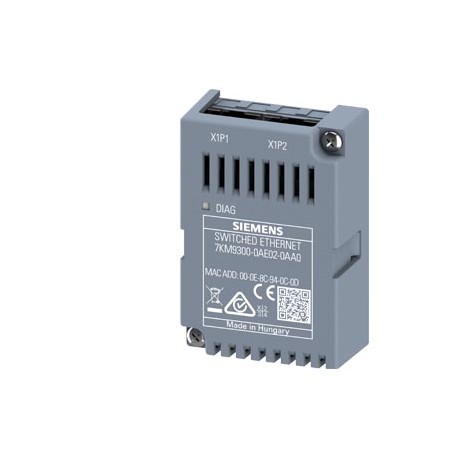

7KM9300-0AE02-0AA0 SIEMENS expansion module switched Ethernet PROFINET V3, plug-in, for7KM PAC32x0 / 4200 / ..
$0.00USD
4217 in stock
Key Specifications
:
EAN:4001869565873
IRT:Yes
UPC:Not available
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869565873 |
| IRT | Yes |
| UPC | Not available |
| ETIM | 5 |
| MTBF | 196.31 y |
| depth | 22 mm |
| width | 43 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 63 mm |
| ● LLDP | Yes |
| ● SNMP | Yes |
| Group Code | P360 |
| ● TCP/IP | Yes |
| ● maximum | 55 °C |
| ● minimum | -25 °C |
| Confirmation | KC |
| Date5/5/2022 | |
| Metal Factor | None |
| Miscellaneous | Miscellaneous |
| Product Group | 5312 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90303370 |
| Product family | SENTRON 7KM PAC Expansion Modules and Accessories |
| Net Weight (kg) | 0,060 Kg |
| fastening method | pluggable |
| Country of origin | Hungary |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| galvanic isolation | Maximum insulation voltage: 500V AC |
| product brand name | SENTRON |
| Packaging Dimension | 65,00 x 80,00 x 50,00 |
| Product Description | expansion module switched Ethernet PROFINET V3, plug-in, for7KM PAC32x0 / 4200 / 3VA COM100/ 800 |
| degree of pollution | 2 according to IEC 61131 |
| product designation | Switched Ethernet PROFINET expansion module |
| protection class IP | IP20 |
| suitability for use | |
| open IE communication | Yes |
| type of voltage supply | via PAC 3200 / PAC3220 / PAC4200 / COM100 / 800 |
| ● PROFINET IO device | Yes |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| ● reactive power meter | No |
| for open IE communication | |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 120 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| type of electrical connection | 2 x RJ45 socket |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 7KM9300-0AE02-0AA0 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| ambient temperature / during operation | |
| interface design 1 / integrated switch | Yes |
| combustibility class according to UL 94 | V 0 |
| reference code / according to EN 61346-2 | P |
| transmission mode / for Industrial Ethernet | PROFINET with 100 Mbps |
| number of interfaces / according to PROFINET | 2 |
| GSD version/revision / with PROFINET / required | GSDML V2.3 |
| transfer rate / for plug type RJ45 / 100 Mbit/s | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 15N / 1DD |
| service / as PROFINET IO device / supports PROFIenergy | Yes |
| protocol / at the 1st interface / media redundancy protocol | Yes |
| software version / with STEP 7 in the TIA Portal / required | ≥ STEP 7 V16 |
| product function / at the Ethernet interface / Autocrossover | Yes |
| product function / at the Ethernet interface / Autonegotiation | Yes |
| ● protocol / at the 1st interface / media redundancy protocol | PROFINET MRP |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.03.2018 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| product function / of the PROFINET IO controller / is supported / PROFINET system redundancy | Yes |
| reference code / according to DIN 40719 extended according to IEC 204-2 / according to IEC 750 | P |
| General Product ApprovalEMCDeclaration of ConformityConfirmationKCUK Declaration of ConformityotherMiscellaneousMiscellaneousPROFINET-Certification | General Product Approval |
