7KLP2100K79XXA1

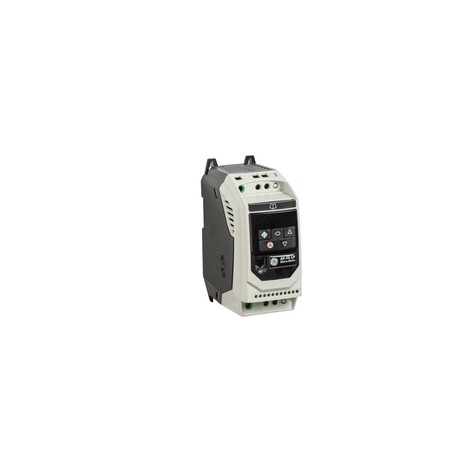

7KLP2100K79XXA1 168606 GENERAL ELECTRIC AF-70 LP Drive 1ph 240V 0.75kW IP20 no EMC
$0.00USD
4988 in stock
Key Specifications
Logo:GE
Phase:3
Family:AF-70 LP Micro Adjustable Frequency Drive
UNSPSC:39122001
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Logo | GE |
| Phase | 3 |
| Family | AF-70 LP Micro Adjustable Frequency Drive |
| UNSPSC | 39122001 |
| Category | AF-70 LP – Micro AC Variable Speed Drives |
| ETIM 6.0 | EC001857 |
| Approvals | CE, UL, CUL |
| Depth (mm) | 123 |
| Power (KW) | 0,75 |
| Width (mm) | 83 |
| Height (mm) | 173 |
| Weight (kg) | 1 |
| Mains voltage | 200-240 Vac |
| RoHS Indicator | Yes |
| Drive Unit Size | 1 |
| Standard packing | 1 |
| Country of Origin | UK |
| Protection Degree | IP20 - Open Chassis |
| Package depth (mm) | 235 |
| Package width (mm) | 125 |
| Package height (mm) | 165 |
| Package weight (kg) | 1 |
| Number of phases input | 1 |
| Number of phases output | 3 |
| Heavy Duty: Motor Power (HP) | 1 |
| Heavy Duty: Motor Power (KW) | 0,75 |
| Light Duty: Motor Power (HP) | 1 |
| Light Duty: Motor Power (KW) | 0,75 |
| Heavy Duty: Output Current (A) | 4,3 |
| Light Duty: Output Current (A) | 4,3 |
| Supporting protocol for BACnet | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CANopen | Yes |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for Modbus RTU | Yes |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Category
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
