7KFP43005K9RXA1

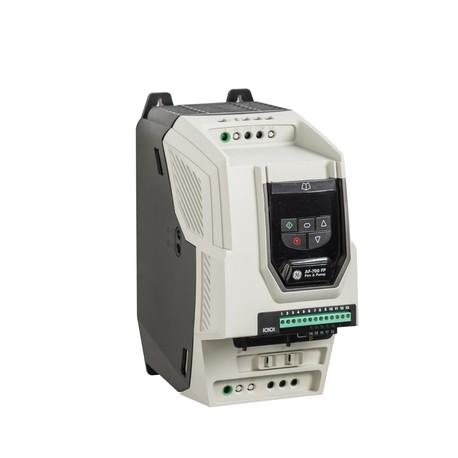

7KFP43005K9RXA1 168733 GENERAL ELECTRIC AF-700 FP Drive 3ph 400V 5.5kW IP20
$0.00USD
3985 in stock
Key Specifications
Logo:GE
Phase:3
Family:AF-700 FP Fan and Pump Adjustable Frequency Drive
UNSPSC:39122001
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Logo | GE |
| Phase | 3 |
| Family | AF-700 FP Fan and Pump Adjustable Frequency Drive |
| UNSPSC | 39122001 |
| Category | AF-700 FP – Fan & Pump AC Variable Speed Drives |
| ETIM 6.0 | EC001857 |
| Approvals | CE, UL, CUL |
| Depth (mm) | 205 |
| Power (KW) | 5,5 |
| Width (mm) | 131 |
| Height (mm) | 261 |
| Weight (kg) | 3,5 |
| Mains voltage | 380-480 Vac |
| RoHS Indicator | Yes |
| Drive Unit Size | 3 |
| Standard packing | 1 |
| Country of Origin | UK |
| Protection Degree | IP20 - Open Chassis |
| Package depth (mm) | 260 |
| Package width (mm) | 165 |
| Package height (mm) | 325 |
| Package weight (kg) | 3,5 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Light Duty: Motor Power (HP) | 7,5 |
| Light Duty: Motor Power (KW) | 5,5 |
| Light Duty: Output Current (A) | 14 |
| Supporting protocol for BACnet | Yes |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for CANopen | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for Modbus RTU | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for PROFINET IO | Yes |
