In Stock Hot Product
7999-08552-9670020

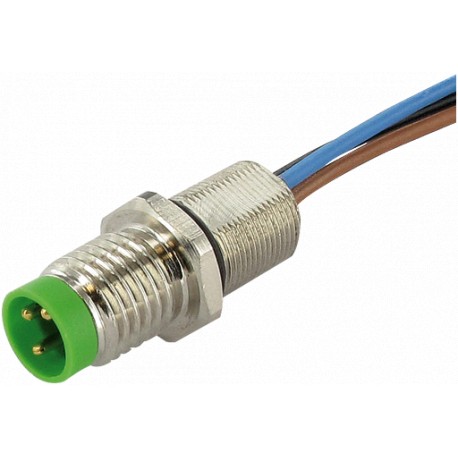

7999-08552-9670020 MURRELEKTRONIK M8 male receptacle front mount PVC 3x0.14 gray 0,2m
$0.00USD
3432 in stock
Key Specifications
EAN:4048879616843
Form:08552
eClass:27279218
Weight::0.013 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879616843 |
| Form | 08552 |
| eClass | 27279218 |
| Weight: | 0.013 kg |
| Art.No.: | 7999-08552-9670020 |
| Protection | IP67 inserted and tightened (EN 60529) |
| No. of poles | 3 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Diameter (core) | 3×0.14 mm² |
| Mounting method | inserted, tightened |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Brass, nickel plated |
| Locking of ports | Screw thread M8 × 1 mm (recommended torque 0.4 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW10) |
| Operating voltage | max. 50 V AC/60 V DC |
| Temperature range | -40...+80 °C |
| country of origin | DE |
| thermal resistance | flame retardant |
| Construction (core) | 18×0.1 mm (multi-strand wire class 6) |
| Rated surge voltage | 1.5 kV |
| Cable identification | 967 |
| Single wire Ø (core) | 0.1 mm |
| customs tariff number | 85444290 |
| Color/numbering of wires | br, bk, bl |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Operating current per contact | max. 4 A |
Product Description
M8 male recept. A-cod. front0.2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
