7704-12341-1501000

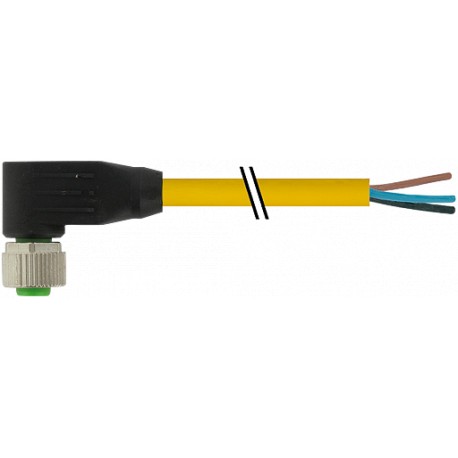

7704-12341-1501000 MURRELEKTRONIK M12 female 90° with cable V4A TPE 4xAWG18 yellow UL/CSA + drag chain 10m
$0.00USD
3073 in stock
Key Specifications
EAN:4048879635073
Form:12341
Shield:no
eClass:27279218
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879635073 |
| Form | 12341 |
| Shield | no |
| eClass | 27279218 |
| Weight: | 0.73 kg |
| Art.No.: | 7704-12341-1501000 |
| Material | PUR |
| Outer Ø | 7.2 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Cable Type | TPE |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | yellow |
| Test voltage | 4 000 V |
| Color (jacket) | yellow |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±180°/m |
| Wire isolation | PVC (br, wh, bl, bk) |
| Diameter (core) | 4 × AWG18/19 |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 600 V AC |
| Resistor (core) | max. 22.5 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 20626/10708), CSA; CE conform |
| Locking material | Stainless steel 1.4404 (V4A) |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | TPE (UL/CSA) |
| Operating voltage | max. 250 V AC/DC |
| Outer-Ø (jacket) | 7.2 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 10 Mio. |
| Cable weight [g/m] | 78,57 |
| thermal resistance | flame retardant |
| Bend radius (fixed) | 10 × outer Ø |
| Construction (core) | 19 × 0.254 mm (multi-strand wire class 5) |
| Bend radius (moving) | 15 × outer Ø |
| Cable identification | 150 |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 3 Mio. (25 °C) |
| No./diameter of wires | 4 × 0.75 mm² |
| Single wire Ø (core) | 0.234 mm |
| Stranding combination | 4 wires twisted |
| customs tariff number | 85444290 |
| Wire-Ø incl. isolation | 1.93 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -40...+105 °C |
| Temperature range (mobile) | -20...+90 °C |
| Operating current per contact | max. 4 A |
| No. of bending cycles (C-track) | max. 10 Mio. (25 °C) |
Product Description
M12 female 90° A-cod. with cable V4ATPE 4x18AWG ye UL/CSA. ITC/PLTC 10m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
