7700-A4A01-UMC1500

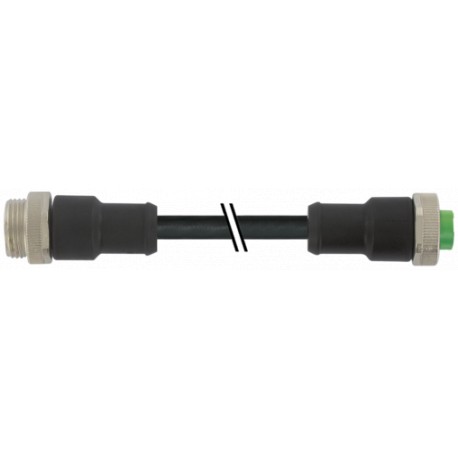

7700-A4A01-UMC1500 MURRELEKTRONIK Mini (7/8) 4 pole, Male (Ext.) Straight/Female Straight PUR, UL/CSA, 4x16A..
$0.00USD
4274 in stock
Key Specifications
Form:A4A01
Material:PUR
Outer Ø:8.0 mm ±5%
Protection:IP68 inserted and tightened (EN 60529)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | A4A01 |
| Material | PUR |
| Outer Ø | 8.0 mm ±5% |
| Protection | IP68 inserted and tightened (EN 60529) |
| Cable length | 15 m |
| Cable number | UMC |
| Jacket Color | black |
| Wire isolation | TPM (br, wh, bl, bk) |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Compression gland | 7/8" (SW24) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 600 V AC/DC |
| Temperature range | -25...+80 °C, depending on cable quality |
| C-track properties | 5 Mio. |
| Bend radius (fixed) | 7.5× outer Ø |
| Construction (core) | 2.3 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| No./diameter of wires | 4× 1.5 mm² |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Operating current per contact | max. 9 A |
| Product article number of manufacturer | 7700-A4A01-UMC1500 |
Product Description
Mini (7/8) 4 pole, Male (Ext.) 0°/Female 0°
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* only for products with UL/CSA approved cable
