7700-A4031-UMC0300

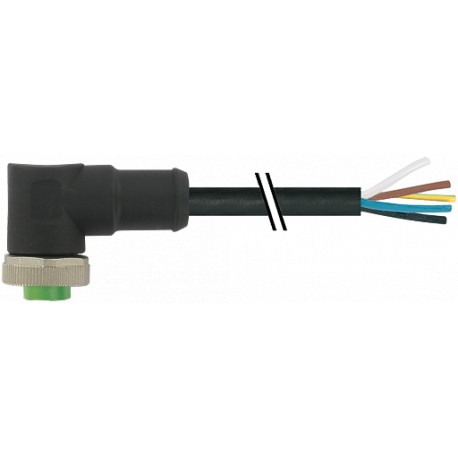

7700-A4031-UMC0300 MURRELEKTRONIK Mini (7/8) 4 pole, Female 90° with cable PUR, UL/CSA, 4x16AWG, black, 3.0m
$0.00USD
3520 in stock
Key Specifications
EAN:4048879698214
Form:A4031
eClass:27279218
Weight::0.322 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879698214 |
| Form | A4031 |
| eClass | 27279218 |
| Weight: | 0.322 kg |
| Art.No.: | 7700-A4031-UMC0300 |
| Material | PUR |
| Outer Ø | 8.0 mm ±5% |
| Protection | IP68 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | UMC |
| Jacket Color | black |
| No. of poles | 4 |
| Packaging unit | 1 |
| Wire isolation | TPM (br, wh, bl, bk) |
| Mounting method | inserted, tightened |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | 7/8" (SW24) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 600 V AC/DC |
| Temperature range | -25...+80 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 5 Mio. |
| Bend radius (fixed) | 7.5 × outer Ø |
| Construction (core) | 2.3 mm ±5% |
| Rated surge voltage | 4 kV |
| Bend radius (moving) | 10 × outer Ø |
| No./diameter of wires | 4 × 1.5 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Operating current per contact | max. 9 A |
Product Description
Mini (7/8) 4 pole, Female 90° w/ CablePUR 4x1.5 (4x16AWG) bk UL/CSA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
