7700-A3A31-UMB0750

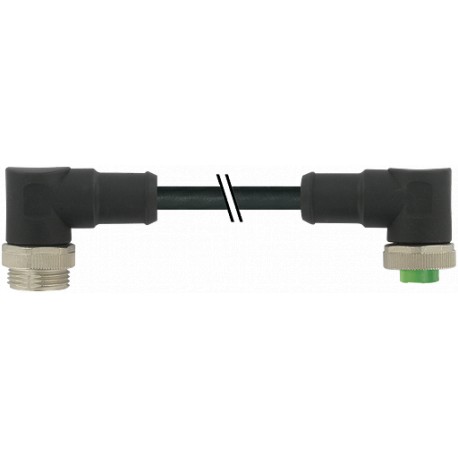

7700-A3A31-UMB0750 MURRELEKTRONIK Mini (7/8) 3 pole, Male (Ext.) 90°/Female 90° PUR, UL/CSA, 3x16AWG, black,..
$0.00USD
3506 in stock
Key Specifications
EAN:4048879637091
Form:A3A31
eClass:27279218
Weight::0.786 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879637091 |
| Form | A3A31 |
| eClass | 27279218 |
| Weight: | 0.786 kg |
| Art.No.: | 7700-A3A31-UMB0750 |
| Material | PUR |
| Outer Ø | 7.4 mm ±5% |
| Protection | IP68 inserted and tightened (EN 60529) |
| Cable number | UMB |
| Jacket Color | black |
| Packaging unit | 1 |
| Wire isolation | TPM (br, bl, gnye) |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Compression gland | 7/8" (SW24) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 600 V AC/DC |
| Temperature range | -25...+80 °C, depending on cable quality |
| C-track properties | 5 Mio. |
| Bend radius (fixed) | 7.5 × outer Ø |
| Bend radius (moving) | 10× outer Ø |
| No./diameter of wires | 3×1.5 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Operating current per contact | max. 12 A |
Product Description
Mini (7/8) 3 pole, Male (Ext.) 90°/Female 90°PUR 3x1.5 (3x16AWG) bk UL/CSA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
