71403

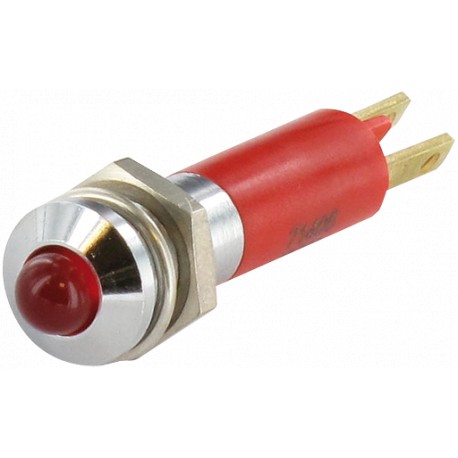

71403 MURRELEKTRONIK Led indicator red LED 3mm 24V DC 20 mA IP40
$0.00USD
3404 in stock
Key Specifications
EAN:4048879041218
LED Ø:3.0 mm ±5%
eClass:27261590
Housing:Brass, chrome plated
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879041218 |
| LED Ø | 3.0 mm ±5% |
| eClass | 27261590 |
| Housing | Brass, chrome plated |
| Weight: | 0.003 kg |
| Art.No.: | 71403 |
| Connection | Faston 2.0 × 0.5 mm |
| Packaging unit | 10 |
| Operating voltage | 24 V DC ±15% |
| Temperature range | -40...+70 °C |
| country of origin | DE |
| Current consumption | approx. 15 mA |
| customs tariff number | 85318070 |
| Dimensions H × W × D | 7×7×33 mm |
| Front panel hole diameter Ø | 6 mm |
| Protection (IEC 60529/EN 60529) | IP40 |
Product Description
LED-INDICATOR REDLED 3mm - 24V DC - IP40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
