70MH-RE03B-0000000

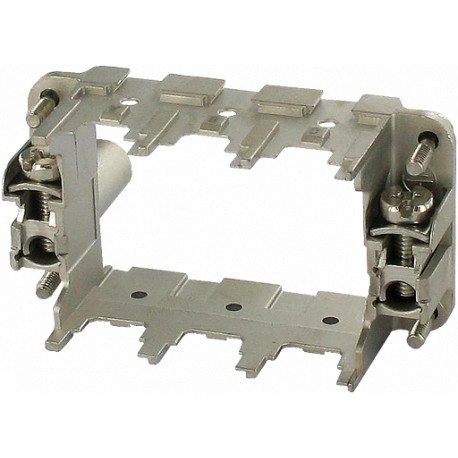

70MH-RE03B-0000000 MURRELEKTRONIK B10 frame (female) for 3 modules
$0.00USD
3056 in stock
Key Specifications
EAN:4048879641746
Size:B10
eClass:27143424
Connection:Screw terminal
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879641746 |
| Size | B10 |
| eClass | 27143424 |
| Connection | Screw terminal |
| Frame type | Female |
| No. of poles | 2 PE |
| Packaging unit | 1 |
| Material (frame) | Zinc die casting, nickel-plated |
| Climatic category | 40/125/10 |
| Temperature range | -40...+125 °C |
| country of origin | CZ |
| Contact resistance | ≤ 5 mΩ |
| Dimensions H×W×D | 36.5×34.4×64.2 mm |
| Flammability class | V-0 (acc. to UL 94) |
| Material (contact) | Brass |
| Mating cycles (frame) | min. 500 |
| customs tariff number | 85389099 |
| Holding force (modules) | ≥ 300 N (when stuck)/≥ 600 N (when pulling) |
| No. of module positions | 3 |
| Connection cross section | 1...6 mm² (AWG 18...10) |
| Material (safety element) | PC GF |
| Holding force (PE contact) | 250 N |
| Material (contact surface) | Ni |
| Insertion and withdrawal force | < 60 N |
| Mating cycles (safety element) | min. 20 |
