70MH-MAG2C-0020704

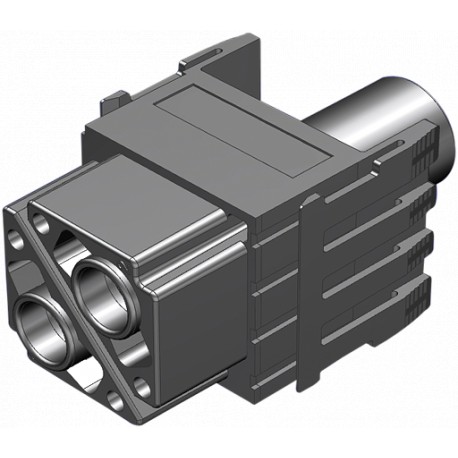

70MH-MAG2C-0020704 MURRELEKTRONIK Power female module, 2-pole, crimp t.
$0.00USD
3570 in stock
Key Specifications
EAN:4048879641692
Type:Female
eClass:27143424
Weight::0.021 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879641692 |
| Type | Female |
| eClass | 27143424 |
| Weight: | 0.021 kg |
| Art.No.: | 70MH-MAG2C-0020704 |
| Connection | Crimp |
| No. of poles | 2 |
| Mating cycles | min. 500 |
| Material group | I |
| Packaging unit | 5 |
| Pollution Degree | 3 |
| Climatic category | 40/125/10 |
| Material (module) | PA GF |
| Operating current | 100 A |
| Operating voltage | 1 000 V AC/DC |
| Temperature range | -40...+125 °C |
| country of origin | CZ |
| Contact resistance | ≤ 5 mΩ |
| Flammability class | V-0 (acc. to UL 94) |
| Material (contact) | Brass |
| Rated surge voltage | 8 kV |
| Isolation resistance | ≥ 10^8 Ω |
| Current load capacity | see derating curve |
| Over voltage category | III |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 53×13×13 mm |
| Holding force (modules) | ≥ 300 N |
| No. of module positions | 2 |
| Wire-Ø incl. isolation | max. 13 mm |
| Connection cross section | 10...35 mm² (AWG 8...2) |
| Material (contact surface) | Ag |
| Insertion and withdrawal force | < 140 N |
Product Description
Power female module, 2-pole, crimp t.1000 V, 100 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
