70MH-MAC2A-0010707

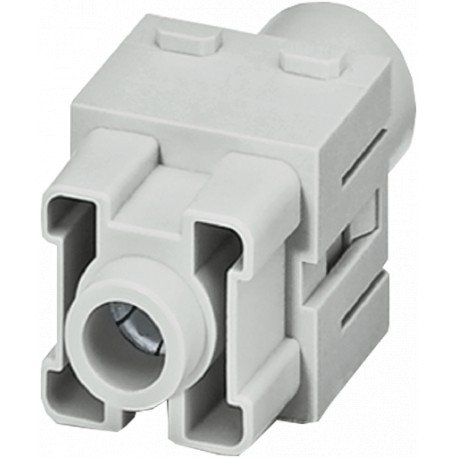

70MH-MAC2A-0010707 MURRELEKTRONIK Female module, 1-pole, axial screw t.
$0.00USD
3304 in stock
Key Specifications
EAN:4048879663694
Type:Female
eClass:27143424
Weight::0.064 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879663694 |
| Type | Female |
| eClass | 27143424 |
| Weight: | 0.064 kg |
| Art.No.: | 70MH-MAC2A-0010707 |
| Connection | Axial screw connection, hexagonal socket (SW5) |
| No. of poles | 1 |
| Mating cycles | min. 500 |
| Packaging unit | 1 |
| Pollution Degree | 3 |
| Stripping length | 16 mm |
| Material (module) | PC |
| Operating current | 200 A |
| Operating voltage | 1 000 V AC/DC |
| Temperature range | -40...+125 °C |
| Tightening torque | 8 Nm (25...35 mm²); 9 Nm (50 mm²); 10 Nm (70 mm²) |
| country of origin | PL |
| Flammability class | V-0 (acc. to UL 94) |
| Material (contact) | Brass |
| Rated surge voltage | 8 kV |
| Over voltage category | III |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 35×30.3×29.4 mm |
| No. of module positions | 2 |
| Wire-Ø incl. isolation | max. 12 mm (25 mm²); 16 mm (40 mm²) |
| Connection cross section | 25...70 mm² (AWG 3...00) |
| Material (contact surface) | Ag |
Product Description
Female module, 1-pole, axial screw t.1000 V, 200 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
