70MH-MAC1C-0200502

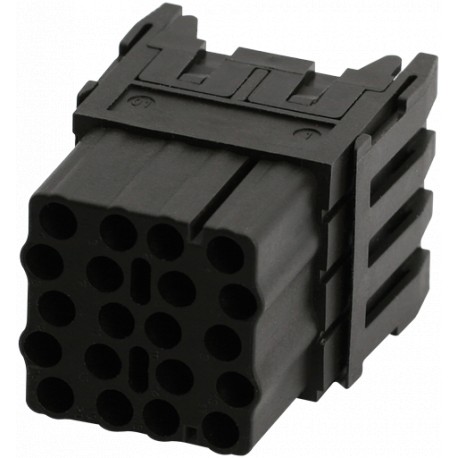

70MH-MAC1C-0200502 MURRELEKTRONIK Female module, 20-pole, crimp t.
$0.00USD
4597 in stock
Key Specifications
EAN:4048879641678
Type:Female
eClass:27143424
Weight::0.122 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879641678 |
| Type | Female |
| eClass | 27143424 |
| Weight: | 0.122 kg |
| Art.No.: | 70MH-MAC1C-0200502 |
| Connection | Crimp |
| Mating cycles | min. 500 |
| Material group | I |
| Packaging unit | 5 |
| Pollution Degree | 3 |
| Climatic category | 40/125/10 |
| Material (module) | PA GF |
| Operating current | 16 A |
| Operating voltage | 500 V AC/DC |
| Temperature range | -40...+125 °C |
| country of origin | CZ |
| Contact resistance | ≤ 5 mΩ |
| Flammability class | V-0 (acc. to UL 94) |
| Material (contact) | Brass |
| Rated surge voltage | 6 kV |
| Isolation resistance | ≥ 10^8 Ω |
| Current load capacity | see derating curve |
| Over voltage category | III |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 46.8×29.2×34.4 mm |
| Holding force (modules) | ≥ 550 N |
| No. of module positions | 2 |
| Wire-Ø incl. isolation | max. 4.6 mm |
| Connection cross section | 0.5...4 mm² (AWG 20...11) |
| Holding force (contacts) | ≥ 130 N |
| Material (contact surface) | Ag Au |
| Insertion and withdrawal force | < 500 N |
Product Description
Female module, 20-pole, crimp t.500 V, 16 A
