70MH-GTFNS-A02E200

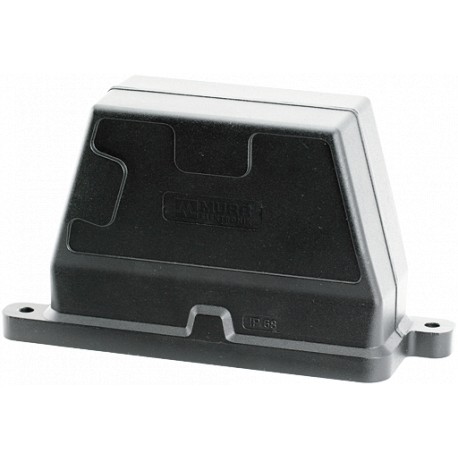

70MH-GTFNS-A02E200 MURRELEKTRONIK B16 Hood, IP68
$0.00USD
3962 in stock
Key Specifications
EAN:4048879647434
Size:B16
eClass:27143424
Weight::0.614 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879647434 |
| Size | B16 |
| eClass | 27143424 |
| Weight: | 0.614 kg |
| Art.No.: | 70MH-GTFNS-A02E200 |
| Cable outlet | laterally |
| Housing type | Hood |
| Mating cycles | min. 500 |
| Threaded hole | M40 |
| Packaging unit | 1 |
| Locking material | Stainless steel |
| Locking of ports | Screw locking |
| Climatic category | 40/125/21 |
| Material (gasket) | Silicon |
| Temperature range | -40...+125 °C |
| Tightening torque | 4 Nm |
| country of origin | CZ |
| Material (housing) | Aluminum die-cast |
| No. of cable outlets | 1 |
| Protection (housing) | IP68 inserted and tightened (EN 60529), with gland |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 110.5×58×165 mm |
| Material (housing surface) | powder-coated |
Product Description
B16 Hood, IP68Screw locking, side entry M40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
