70MH-ES6U2-FP05020

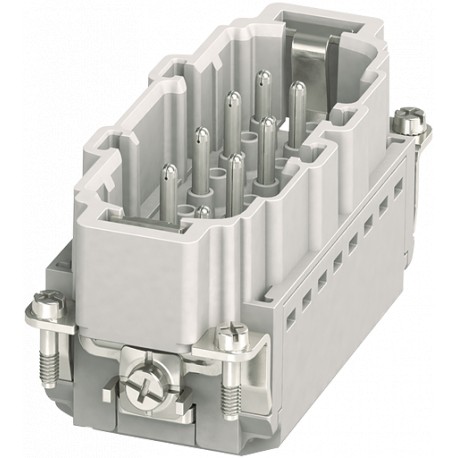

70MH-ES6U2-FP05020 MURRELEKTRONIK B16 male 6+2-pole, Push-in, 800/500 V, 16 A
$0.00USD
4622 in stock
Key Specifications
EAN:4048879665063
Size:B16
Type:Male
eClass:27143424
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879665063 |
| Size | B16 |
| Type | Male |
| eClass | 27143424 |
| Weight: | 0.022 kg |
| Art.No.: | 70MH-ES6U2-FP05020 |
| Connection | Push-In terminals |
| No. of poles | 6 + 2 + PE |
| Mating cycles | min. 500 |
| Packaging unit | 1 |
| Pollution Degree | 3 |
| Stripping length | 8...10 mm |
| Operating current | 16 A |
| Operating voltage | 830/500 V AC/DC |
| Temperature range | -40...+125 °C |
| country of origin | CN |
| Flammability class | V-0 (acc. to UL 94) |
| Material (contact) | Brass |
| Rated surge voltage | 8/6 kV |
| Current load capacity | see derating curve |
| Over voltage category | III |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 34.4×34×83.5 mm |
| Connection cross section | 0.14...2.5 mm² (AWG 26...13) |
| Material (contact carrier) | PA |
| Material (contact surface) | Ag |
