In Stock Hot Product
70MH-ES010-EP03020

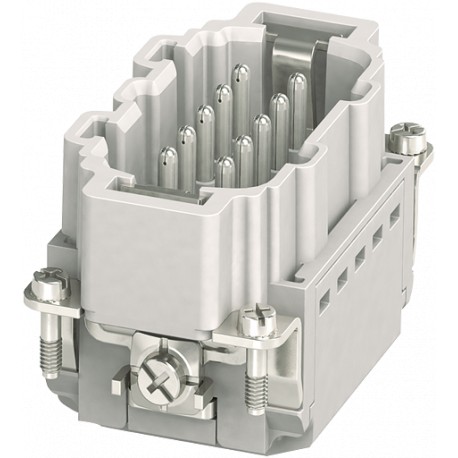

70MH-ES010-EP03020 MURRELEKTRONIK B10 male 10-pole, Push-in, 500 V, 16 A
$0.00USD
4556 in stock
Key Specifications
EAN:4048879664486
Size:B10
Type:Male
eClass:27143424
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879664486 |
| Size | B10 |
| Type | Male |
| eClass | 27143424 |
| Weight: | 0.062 kg |
| Art.No.: | 70MH-ES010-EP03020 |
| Connection | Push-In terminals |
| No. of poles | 10 + PE |
| Mating cycles | min. 500 |
| Packaging unit | 1 |
| Pollution Degree | 3 |
| Stripping length | 8...10 mm |
| Climatic category | 40/125/10 |
| Operating current | 16 A |
| Operating voltage | 500 V AC/DC |
| Temperature range | -40...+125 °C |
| country of origin | CN |
| Flammability class | V-0 (acc. to UL 94) |
| Material (contact) | Brass |
| Rated surge voltage | 6 kV |
| Current load capacity | see derating curve |
| Over voltage category | III |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 33.7×33.9×63.4 mm |
| Connection cross section | 0.14...2.5 mm² (AWG 26...14) |
| Material (contact carrier) | PC |
| Material (contact surface) | Ag |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
